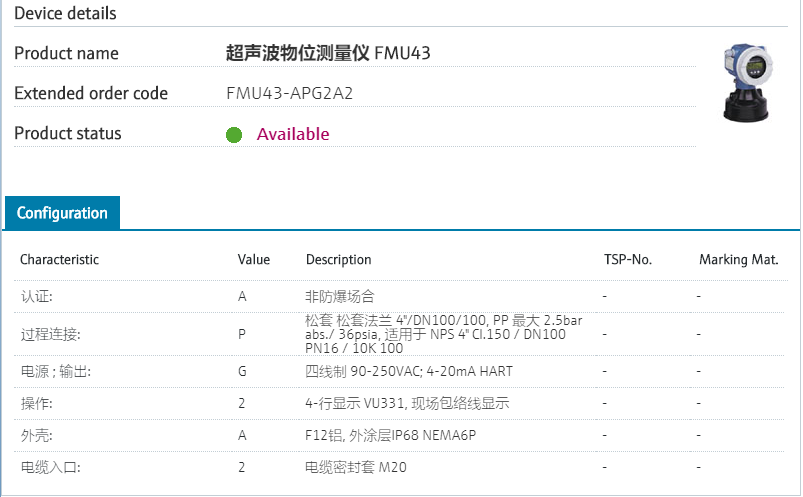

FMU43-APG2A2 扩展订货号 FMU43-APG2A2 名称 ***Prosonic M FMU43 基本描述 Level transmitter, continuous.
Measuring: ultrasonic, contactless.
Setup-/diagnostic software
included.
Sensor enclosure: UP, Seal: EPDM.
Membrane: 316Ti.
max meas. range under ideal condition:
Liquid: 15m/48ft, Solid: 7m/22ft.
Blocking distance: 60cm/2ft.
:: Measuring range freely adjustable
:: Volume calculation
Application safety.
:: Independent of dielectricity
:: Self cleaning effect sensor membran
:: Integrat. sound velocity compensation认证: A 非防爆场合 过程连接: P 松套 松套法兰 4"/DN100/100, PP 最大 2.5bar abs./ 36psia, 适用于 NPS 4" Cl.150 / DN100 PN16 / 10K 100 电源 ; 输出: G 四线制 90-250VAC; 4-20mA HART 操作: 2 4-行显示 VU331, 现场包络线显示 外壳: A F12铝, 外涂层IP68 NEMA6P 电缆入口: 2 电缆密封套 M20 型号参数
FMU43-APG2A2
超声波液位计 15米量程，四线制， 220V供电，4-20ma HART输出，带DN100法兰
