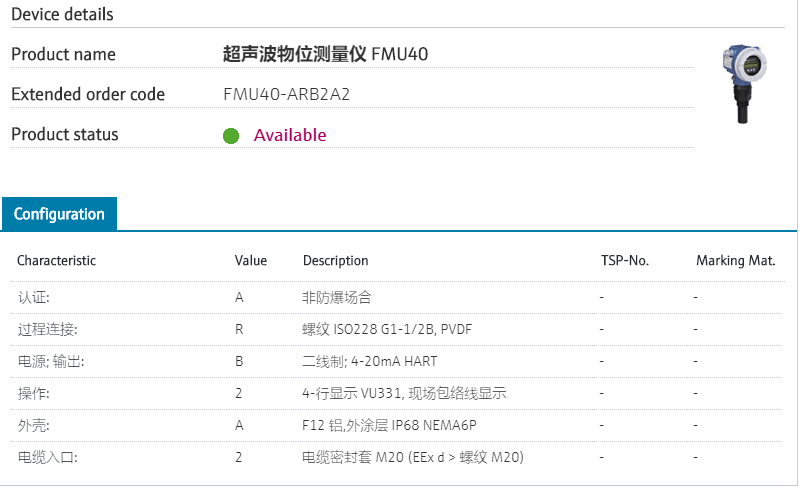

FMU40-ARB2A2 订货号 FMU40-ARB2A2 扩展订货号 (FMU40-ARB2A2) 名称 超声波物位计 FMU40 基本描述 Measurement: Level, Ultrasonic,
contactless.
Application: liquids, solids.
Sensor: PVDF, seal: EPDM.
Measuring range: 5m/16ft (liquid),
2m/6ft (solid).
Blocking distance: 25cm/0.8ft.
Incl. Setup-/diagnostic software.
:: High availability:
Self cleaning effect of sensor membrane.
:: Application safety.
independent of dielectricity/density.认证: A 非防爆场合 过程连接: R 螺纹 ISO228 G1-1/2B, PVDF 电源; 输出: B 二线制; 4-20mA HART 操作: 2 4-行显示 VU331, 现场包络线显示 外壳: A F12 铝,外涂层 IP68 NEMA6P 电缆入口: 2 电缆密封套 M20 (EEx d > 螺纹 M20) 型号参数
FMU40-ARB2A2
5米量程,二线制,4-20ma HART输出,螺纹G1-1/2连接,探头PVDF材质
