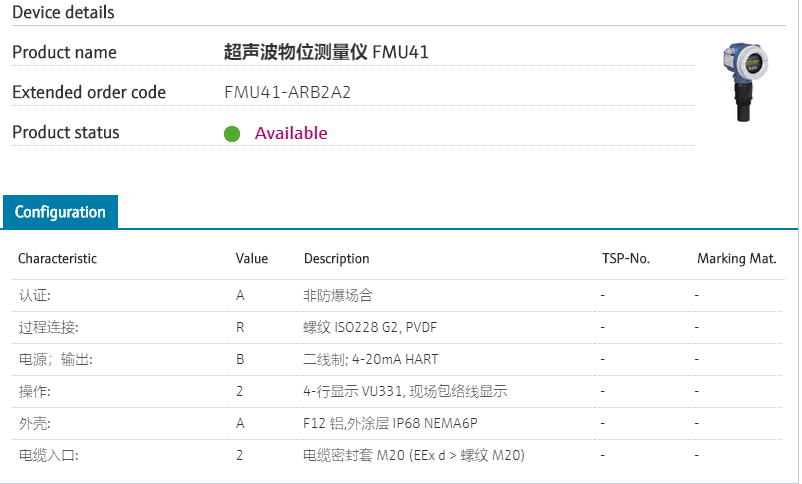

  • Order Code FMU41-ARB2A2
    Ext.Order Code (FMU41-ARB2A2)
    　 Prosonic M FMU41
    　 52010287
    　 SPK: FJC
    　 Level, ultrasonic, contactless.
    Application: liquids, solids.
    Sensor: PVDF, seal: EPDM.
    Measuring range: 8m/26ft (liquid),
    3.5m/11ft (solid).
    Blocking distance: 35cm/1.15ft.
    Incl. Setup-/diagnostic software.
    :: High availability:
    Self cleaning effect of sensor membrane.
    :: Application safety:
    independent of dielectricity/density.
    　 Approval:
    A Non-hazardous area
    　 Process Connection:
    R Thread ISO228 G2, PVDF
    　 Power Supply; Output:
    B 2-wire; 4-20mA HART
    　 Operation:
    2  4-line display VU331, envelope curve display on site
    　 Housing:
    A F12 Alu, coated, IP68 NEMA6P
    　 Cable Entry:
    2 Gland M20 (EEx d > thread M20)

FMU41-ARB2A2

8-meter range, two-wire system, 4-20mA HART output, threaded G2 connection, probe made of PVDF material
