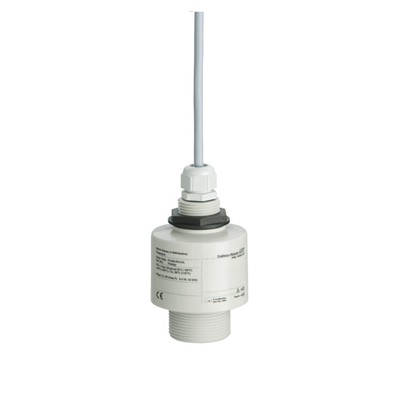

FDU90-RG2AA 订货号 FDU90-1098/0 扩展订货号 (FDU90-RG2AA) 名称 超声波物位计探头 FDU90 基本描述 Measurement: Level, Ultrasonic,
contactless.
Sensor for connection to FMU90/FMU95.
Application: liquids, solids.
Sensor: PVDF.
Measuring range: 3m/9ft (liquid),
1,2m/3ft (solid).
Temperature: -40...80oC/176oF.
Pressure: 4bar/60psi abs.
Blocking distance: 7cm/0,3ft.
Protection class IP68 NEMA6P.
:: High availability:

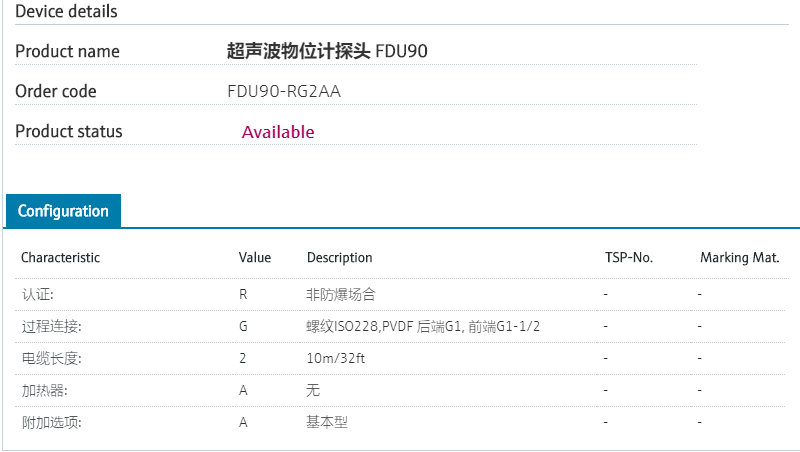

Self cleaning effect of sensor membrane.认证: R 非防爆场合 过程连接: G 螺纹ISO228,PVDF 后端G1, 前端G1-1/2 电缆长度: 2 10m/32ft 加热器: A 无 附加选项: A 基本型 型号参数
FDU90-RG2AA
分体式超声波液位计探头，3米量程，带10米电缆
