825012 Alyza IQ NH4-112
用于IQ传感器网络的铵分析仪Alyza IQ NH4，测量范围1和2，2通道，带两个泵。交付范围：室内外铵分析仪、第一年备件、预装2m SNCIQ和电源线（请分别订购控制器和试剂）。
-
The perfect solution for monitoring ammonium in the treatment plant effluent as well as surface water bodies – on-site analyzer for ammonium measurement in the IQ SENSOR NET
Ammonium Analyzer for the IQ SENSOR NET:
- Minimized reagent consumption and waste
- Reliable results even at very low NH4 concentrations
- Minimum maintenance
- Easy to operate
- Compatible with IQ SENSOR NET

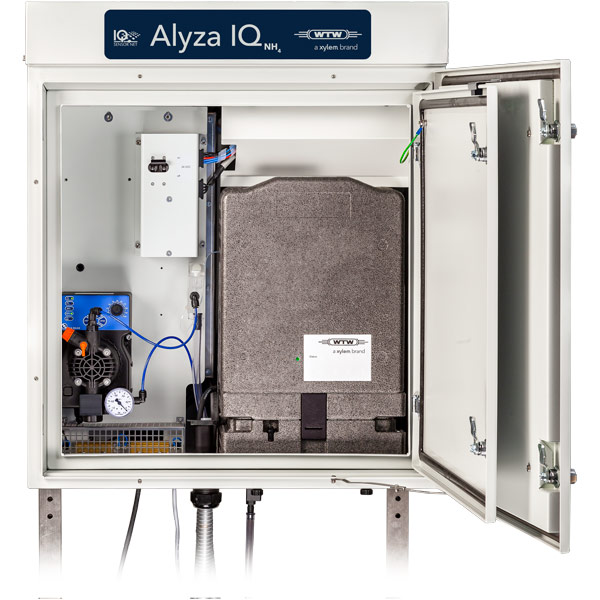

The Alyza IQ NH4 ammonium analyzer is the latest addition to the IQ SENSOR NET. It can be easily integrated into new and existing systems just as simple as a sensor. The measuring principle is based on the photometric indophenol method according to DIN 38 406, which has been a proven detection method for ammonium. Thanks to the wet chemical measurement directly in the process, Alyza IQ is the perfect solution for monitoring the treatment plant effluent as well as surface water bodies.
Highlights:
- Minimized reagent consumption and waste
Alyza IQ boasts an extremely low use of reagents – an advantage that significantly reduces operating costs and waste generation - Simple Service
Regular maintenance takes only 10 minutes every 2-3 months. - Reliable results from low to high measuring levels
Thanks to the new technology, Alyza IQ provides an accurate and reliable measurement over the whole range of 0.02–5.00 mg/l and 0.10–20.00 mg/l NH4-N. - Automatic cleaning and calibration with standards
The fully automated cleaning as well as 2-point calibration with selectable intervals ensures an exceptional degree of operational safety. - On-site installation
Alyza IQ NH4 can be installed directly at the basin. This guarantees short transport distances and promptly measured values. Thanks to the climate package, the analyzer is perfectly suited for all weathers.
Models:
Alyza IQ NH4-110 NH4 analyzer, 2 measurement ranges, 1 channel
Alyza IQ NH4-111 NH4 analyzer, 2 measurement ranges, 1 channel, incl. pump
Alyza IQ NH4-112 NH4 analyzer, 2 measurement ranges, 2 channels, incl. 2 pumps
Applications:
- Wastewater treatment plant effluent monitoring
- River monitoring
Model Alyza IQ NH4-110 Alyza IQ NH4-111 Alyza IQ-NH4-112 Order No. 825010 825011 825012 Measurement method Berthelot method (Indophenol method) Measurement range Two measuring ranges: MR1:
Displayed:
Resolution:
Accuracy:
0.02 … 5.00 mg/l NH4-N
0.00 … 5.00 mg/l NH4-N
0.01 mg/l NH4-N
± 2 % ± 0.02 mg/l
MR2:
Displayed:
Resolution:
Accuracy:
0.10 … 20.00 mg/l NH4-N
0.00 … 20.00 mg/l NH4-N
0.01 mg/l NH4-N
± 3 % ± 0.10 mg/l
Sample streams/channels 1 1 2 Cleaning Automatic cleaning with cleaning solutions Calibration Automatic 1- and 2-point calibrations Operational temperature -4 ... 104 °F (-20 … +40) °C
