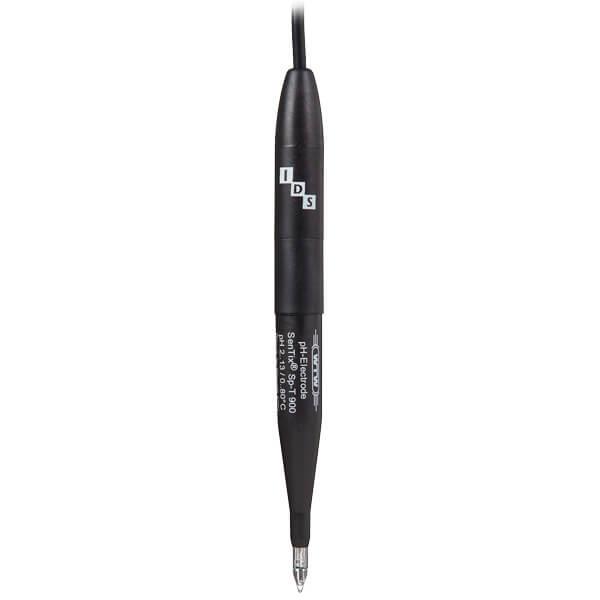

SenTix® Sp-T 900 IDS pH Electrodes for Penetration Measurement
IDS - Polymer Electrolyte - Hole Junction - Temperature Sensor - Spear
SenTix® Sp-T 900, Sp-T 900-P: pH electrodes with spear-shaped membrane for penetration measurement
Variants Order-No. Name Attributes 103752 SenTix® Sp-T 900 1,5 m fixed cable with water-proof digital plug 103766 SenTix® Sp-T 900-P Plug head for AS/IDS-x cable or IDS WLM-S wireless module Highlights:
- Safely measured values due to signal processing in the sensor
- Easy electrode replacement thanks to calibration data stored inside sensor
- Sensor quality monitoring by QSC function
- Temperature sensor
- Spear-type membrane makes penetration easy
- Easy to clean hole junction
IDS pH electrode for penetration measurement of meat, fruit or cheese with integrated temperature sensor, QSC function, memory for 10 calibrations serial number, with spear type membrane, hole junction and polymer electrolyte.
-
SenTix® Sp-T 900 Sp-T 900-P Order no. 103752 103766 Membrane shape Spear Shaft Plastic Diaphragm Hole Temp. sensor NTC 30 kOhm Reference electrolyte Referid® Membrane resistance < 400 MΩ Measuring range 2 … 13 pH Temp. range 0 … 80 °C Shaft length 65/25 mm Shaft diameter 15/5 mm Connection 1,5 m fixed cable with water-proof digital plug Plug head for AS/IDS-x cable or IDS WLM-S wireless module
103752 SenTix® Sp-T 900
IDS pH electrode for penetration measurement for measurement of meat, fruit or cheese with integrated temperature sensor, QSC function, memory for 10 calibrations serial number, 1.5 m cable with waterproof digital connector for MultiLine®, MonoLine or inoLab® IDS.
IDS pH电极用于渗透测量，用于测量肉类、水果或奶酪，带有集成温度传感器、QSC功能、10次校准序列号存储器、1.5米电缆，带防水数字连接器，适用于MultiLine®、MonoLine或inoLab®IDS。
IDS pH电极用于渗透测量，用于测量肉类、水果或奶酪，带有集成温度传感器、QSC功能、10次校准序列号存储器、1.5米电缆，带防水数字连接器，适用于MultiLine®、MonoLine或inoLab®IDS。
