SenTix® Sp pH Electrodes
Polymer Electrolyte - Hole Junction - Spear
SenTix® Sp, Sp-DIN, Sp-T: pH electrodes for penetration measurement
SenTix® Variant Sp-T will be available for order in January 2024!
Variants Order-No. Name Attributes 103645 SenTix® Sp S7 plug head, without cable 103730 SenTix® Sp-DIN 1 m fixed cable with water-proof DIN 103733 SenTix® Sp-T NTC 30 kOhm, 1 m fixed cable with water-proof DIN and 4 mm banana plug Highlights:
- low resistance membrane glass for reliable measurements
- spear-type membrane makes penetration easy
- easy to clean hole junction
-
SenTix® Sp Sp-DIN Sp-T Order no. 103645 103730 103733 Membrane shape Spear Shaft Glass Diaphragm Hole Temp. sensor - NTC 30 kOhm Reference electrolyte Referid® Membrane resistance < 400 MΩ Measuring range 2 … 13 pH Temp. range 0 … 80 °C Shaft length 65/25 mm Shaft diameter 15/5 mm Connection S7 plug head, without cable 1 m fixed cable with water-proof DIN 1 m fixed cable with water-proof DIN and 4 mm banana plug

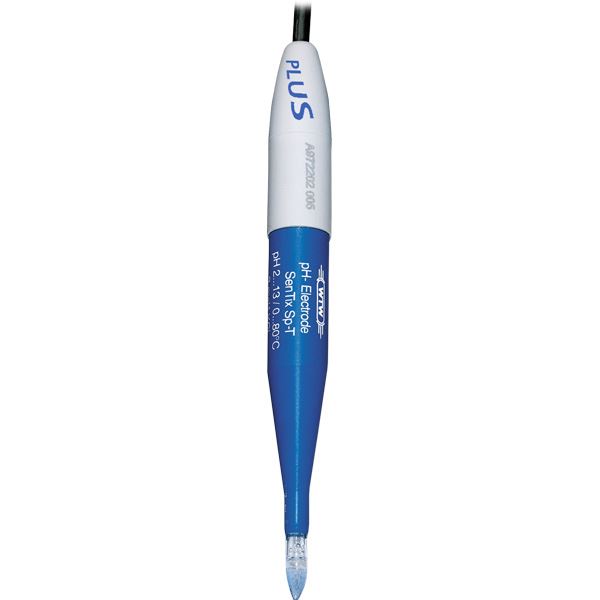

103733 SenTix® Sp-T
pH electrode for penetration measurements in meat, fruit and cheese, with built-in temperature sensor NTC 30 kOhm, 1 m fixed cable, waterproof DIN plug and 4 mm banana plug.
用于肉类、水果和奶酪渗透测量的pH电极，内置温度传感器NTC 30 kOhm，1米固定电缆，防水DIN插头和4毫米香蕉插头。
用于肉类、水果和奶酪渗透测量的pH电极，内置温度传感器NTC 30 kOhm，1米固定电缆，防水DIN插头和4毫米香蕉插头。
