PMD75B-NFBADBH37FCGSAJA1D+VD | PMD75B-22E51/0
量程50KPa, 隔爆
售价:
¥
0.00
原价:
¥0.00
ꄑ0
-

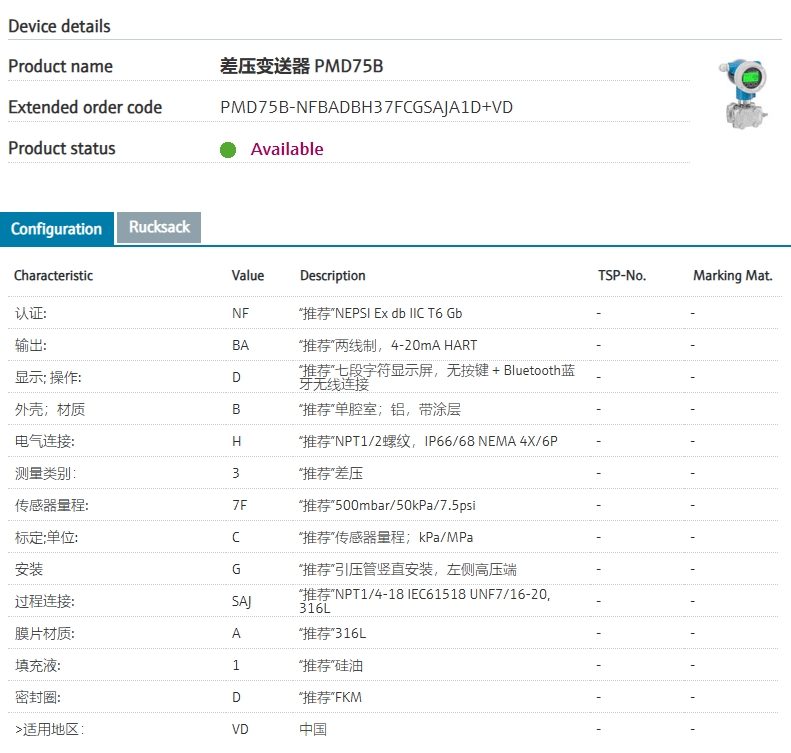

PMD75B-NFBADBH37FCGSAJA1D+VD 订货号 PMD75B-22E51/0 扩展订货号 (PMD75B-NFBADBH37FCGSAJA1D+VD) 名称 差压变送器 PMD75B 基本描述 Differential pressure, piezoresistive.
Differential pressure transmitter.
Compact.
Application: pressure/level/flow.
Metal membrane: welded.
:: Modular.
:: Easy local or remote operation
via Bluetooth (optional).认证: NF “推荐”NEPSI Ex db IIC T6 Gb 输出: BA “推荐”两线制,4-20mA HART 显示; 操作: D “推荐”七段字符显示屏,无按键 + Bluetooth蓝牙无线连接 外壳;材质 B 外壳;材质 电气连接: H “推荐”NPT1/2螺纹,IP66/68 NEMA 4X/6P 测量类别: 3 “推荐”差压 传感器量程: 7F 推荐”500mbar/50kPa/7.5psi 标定;单位: C “推荐”传感器量程;kPa/MPa 安装 G “推荐”引压管竖直安装,左侧高压端 过程连接: SAJ “推荐”NPT1/4-18 IEC61518 UNF7/16-20, 316L 膜片材质: A “推荐”316L 填充液: 1 “推荐”硅油 密封圈: D “推荐”FKM >适用地区: VD 中国
