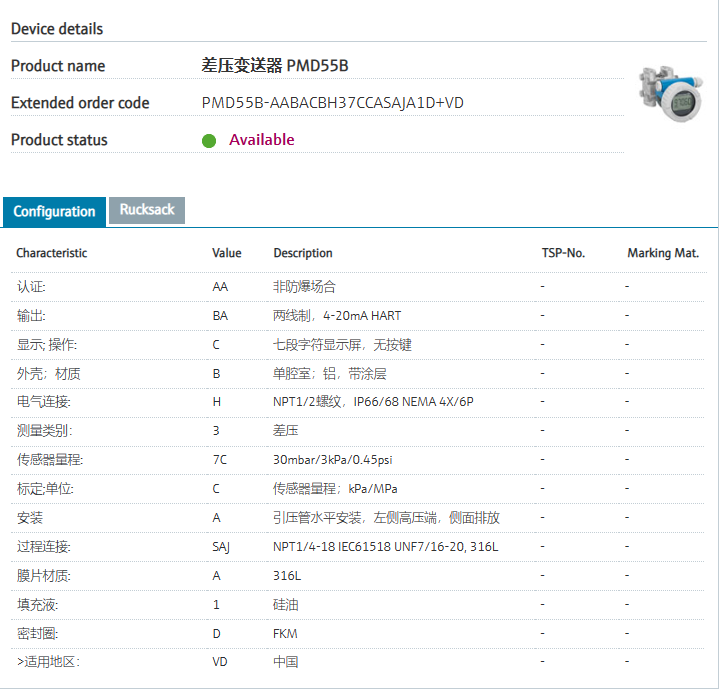

PMD55B-AABACBH37CCASAJA1D+VD 订货号 PMD55B-95D0/0 扩展订货号 (PMD55B-AABACBH37CCASAJA1D+VD) 名称 差压变送器 PMD55B 基本描述 Differential pressure, piezoresistive.
Differential pressure transmitter.
Compact.
Application: pressure/level/flow.
Metal membrane: welded.
:: Modular.
:: Easy local or remote operation
via Bluetooth (optional).认证: AA 推荐”非防爆场合 输出: BA “推荐”两线制，4-20mA HART 显示; 操作: C 七段字符显示屏，无按键/td> 外壳；材质 B “推荐”单腔室；铝，带涂层 电气连接: H “推荐”NPT1/2螺纹，IP66/68 NEMA 4X/6P 测量类别： 3 “推荐”差压 传感器量程: 7C “推荐”30mbar/3kPa/0.45psi 标定;单位: C “推荐”传感器量程；kPa/MPa 安装 A 引压管水平安装，左侧高压端，侧面排放 过程连接: SAJ “推荐”NPT1/4-18 IEC61518 UNF7/16-20, 316L 膜片材质: A “推荐”316L 填充液: 1 “推荐”硅油 密封圈: D “推荐”FKM >适用地区： VD 中国
PMD55B-AABACBH37CCASAJA1D+VD | PMD55B-95D0/0
差压变送器，量程3KPa,不防爆，带显示，两线制4-20ma HART输出,
