PMXX5x FMX5x安装和接线

PMXX5x/FMX5x安装和接线

5系列压力表安装和接线

●安装注意事项:

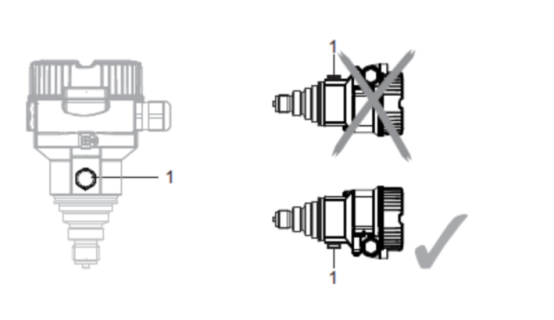

1、水平安装时仪表的呼吸孔(1)需要向下安装,并远离污染物。

2、请勿用坚硬的物体擦拭或接触膜片。

3、请勿安装在水泵的入口和搅拌叶附近。

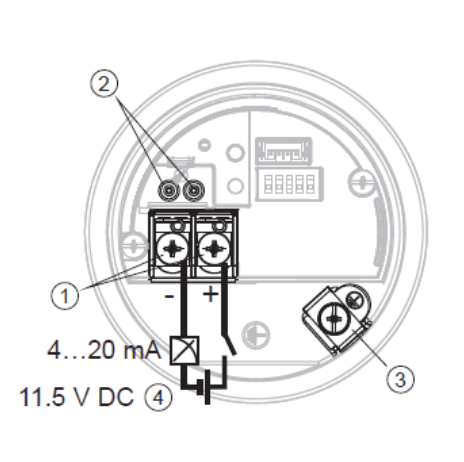

●接线图:

供电电压为11.5-45VDC
