技术参数
加入对比温度计
| 测量原理 | 热电阻温度探测器 |
| 特性 / 应用 | 美国样式模块化温度组件螺纹式过程连接过程连接作为焊接内版本带加长含 保护套管 |
| 保护套管 | bar stock (drilled) |
| 芯子 / 探头 | 矿物绝缘 (MI), 柔性 PTFE-绝缘, 刚性 |
| 保护套管外径 / 芯子 | 3/4'' (19,05 mm) 1'' (25,40 mm) 17/16'' (26,99 mm) 15,88 mm ...33,40 mm (0,63'' ...1,31'') |
| 最大插入深度(按需) | 高达 24" (609 mm) others 按需 |
| 保护套管材质 | 316/316L 105 AlloyC276 others 按需 |
| 可选涂层 | 可选按需 |
| 过程连接 | 外螺纹螺纹: NPT1/2" NPT3/4" NPT1" 焊接内版本插座焊接版本 1" |
| 端部形状 | 缩径锥形直形 |
| 表面粗糙度 Ra | 32 μ内 (0.80 μm) |
| 工作温度范围 | PT100 WW: -200 °C … 600 °C (-328 °F … 1.112 °F) iTHERM StrongSens: -50 °C … 500 °C (-58 °F … 932 °F) PT100 TF: -50 °C … 200 °C (-58 °F … 392 °F) |
| 最大过程压力(静压) | 在 20 °C: 100 bar (1.450 psi) depends 在配置 |
| 测量精度 | 等级 AA 符合 IEC 60751 等级符合 IEC 60751 等级 B 符合 IEC 60751 |
| 响应时间 | 取决于配置 |
| 一体化表头变送器 | 是 (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| 防爆认证 | 变送器仅 FM 是 CSA 是 FM/CSA 是 |
| 认证 | SIL (变送器仅) |
棒材保护套管的温度计坚固耐用，可与装配有变送器的表头组成完整单元，以满足不同的应用环境及空间需求。该温度计具有较高的测量精度和可靠性，且提供各种过程连接、尺寸和材料（如316L SS和Hastelloy C276），可灵活适用于各类应用。
优势
-
带标准表头的模块化温度计和用户自定义插入深度，使用灵活
-
一站式温度测量解决方案。内置传感器的一流变送器，适用于苛刻工业过程应用。拆箱后直接安装使用
-
安装在大多数设备上均能提升电气隔离性能(2 kV)
-
简单的模块化结构：性价比高。 订购和重新订购简单。含传感器和变送器的整体单元提供完整测量点解决方案
-
所有iTEMP®变送器的长期稳定性均≤ 0.05 % /年
-
缩径型/锥管型末端，响应时间短
-
模块化变送器选型简单：4...20 mA模拟量输出、HART®、PROFIBUS® PA或基金会现场总线(FF™)
应用领域
-

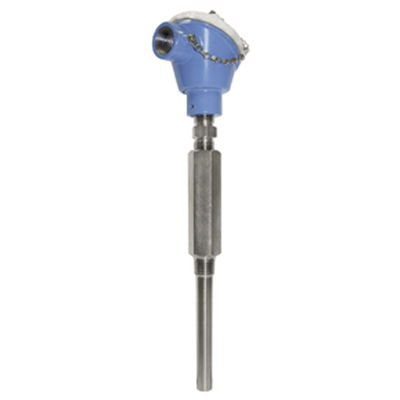

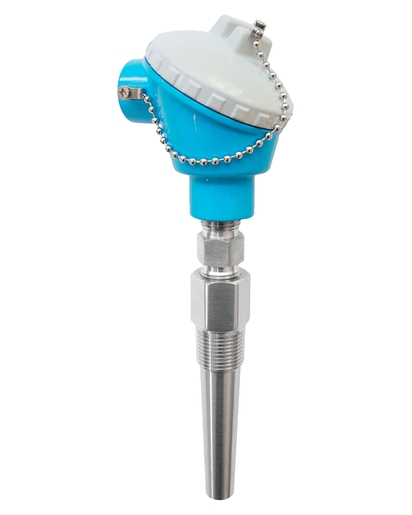

TH13是热电阻(RTDp温度计，安装在热保护套管中，结构坚固，适用于各种工业过程，包括恶劣工况。含带绝缘热电阻(RTD)部件的测量探头、铠装芯子和棒材热保护套管。
-
传感器适用于下列工业行业：化工行业
-
石化行业
-
电厂
-
炼油厂
-
海上平台
