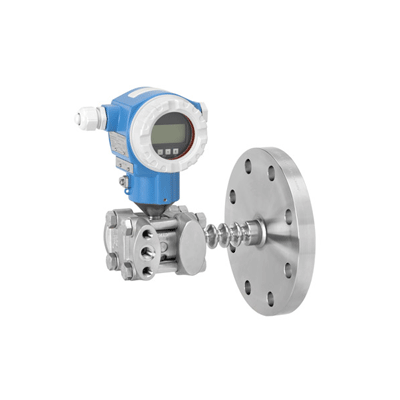

Deltabar PMD55 differential pressure transmitter adopts piezoresistive sensor and welded metal diaphragm, which is mainly used for differential pressure measurement of liquid, steam and gas in process industry or environmental protection industry. The measurement range is adjustable, and the quick setting simplifies the debugging process, reduces the cost and saves time. Complies with IEC61508/IEC61511 standards and meets SIL3 safety requirements.

advantage

reference accuracy: 0.1, platinum version: up to +/-0.075

span ratio: 100:1 or higher

integrated transmitter

Fast debugging with DIP switches

Simple and safe menu-guided operation:-Via field display module:-Via 4...20 mA HART-Via PROFIBUS PA, -Via FF Foundation Fieldbus

Modular continuity measurement of differential pressure, static pressure and pressure (Deltabar M-Deltapilot M,Cerabar M), e.g.-replaceable display,-general-purpose electronic components for pressure and differential pressure measurement

extensive certification, international general

Application areas

for liquid level, volume or mass measurement, differential pressure monitoring of filters and pumps, and for use with pressure-taking elements to measure gas, vapor and liquid flows (volume or mass flow)

process connection: thread

process temperature: -40... 85°C (-40... 185 °F)

measuring range: 0.5mbar ... 40bar (0.0072 ... 600psi)

accuracy: ± 0.1%, "Platinum" ± 0.075% (optional)

international explosion proof certification, SIL
