技术参数
加入对比温度计
| 测量原理 | |
| 特性 / 应用 | 公制样式模块化温度组件适用于危险区域过程连接作为卡套接头无颈部 |
| 保护套管 | 无 (不 intended 至用途带保护套管) |
| 芯子 / 探头 | 矿物绝缘 (MI), 柔性 |
| 保护套管外径 / 芯子 | 6,0 mm (0,24'') |
| 最大插入深度(按需) | 高达 100.000,00 mm (3.937,01'') |
| 保护套管材质 | 1.4401 (316) 合金 600 (2.4816) |
| 过程连接 | 取决于配置 |
| 工作温度范围 | -40 °C ...1.100 °C (-40 °F ...2.012 °F) |
| 最大过程压力(静压) | 在 20 °C: 20 bar (290 psi) |
| 测量精度 | 等级 2 符合 IEC 60584 |
| 响应时间 | t50 = 3 s t90 = 7 s |
| 一体化表头变送器 | 是 (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| 防爆认证 | ATEX |
| 认证 | SIL (变送器仅) |

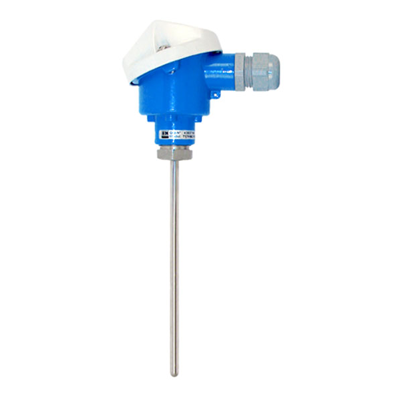

产品概述
高度模块化、坚固耐用的温度计适合几乎所有行业应用。头部选装变送器的设备兼容所有通用通信协议，可即装即用，与直接连线的传感器相比，增强了测量精确度和可靠性。多种过程连接、规格和材质提供了应用的灵活性。
-
优势
-
模块化设计，采用符合DIN EN 50446的标准接线盒和客户指定的浸入长度，灵活性高
-
芯子兼容性高，设计符合DIN 43772标准
-
头部变送器选择容易：模拟输出4至20 mA、HART®、PROFIBUS® PA或 FF现场总线
附件 / 备件 27
共 27 项备件 · 点击展开
| 订货号 | 名称 / 说明 | |
|---|---|---|
| 71367427 | 垫片Packing unit: 10 pieces | 询价 |
| 71044061 | 设备包2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector | 询价 |
| 71111510 | 陶瓷接线端 | 询价 |
| 71111514 | 陶瓷接线端 | 询价 |
| 71389488 | 延长导线 TC IEC 2x type KL=180mm. Packing unit: 3 pieces | 询价 |
| 71389497 | 延长导线 TC IEC 2x type JL=180mm. Packing unit: 3 pieces | 询价 |
| TPC100- | 热电偶铠芯 TPC100Replaceable insert (MgO) | 询价 |
| TA20B- | 接线盒 TA20BConnecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black Ambient temperature: max. +80 oC Protection: IP65 | 询价 |
| TXU10- | 仪表调试包 TXU10用于可以PC编程调试的设备 程序设置+用于带USB接口的PC的连接线 | 询价 |
| READWIN- | Readwin 2000调试包 READWINReadwin 2000 Operation + Read. software | 询价 |
| TMT85- | 温度变送器 TMT85Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose. | 询价 |
| TMT84- | 温度变送器 TMT84Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable. | 询价 |
| TMT82- | 温度变送器 TMT822-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Presetting failure current high. Consider additional marine certificate requirements on application side. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508. | 询价 |
| TMT85- | 温度变送器 TMT85Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose. | 询价 |
| TMT84- | 温度变送器 TMT84Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable. | 询价 |
| TMT82- | 温度变送器 TMT822-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Presetting failure current high. Consider additional marine certificate requirements on application side. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508. | 询价 |
| TID10- | 温度变送器显示器TID10to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84. | 询价 |
| TMT181- | ***iTEMP TMT181, Head Transmitter PCPProduct being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed. | 询价 |
| FXA191- | ***Commubox FXA191Modem to connect smart devices with INTENSOR or HART protocol to personal computers. The signal circuit is intrinsically safe (Ex i a). The connection to the personal computer is realized with the inte- grated cable through the serial port. | 询价 |
| FXA195- | 通讯接口 FXA195Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508. | 询价 |
| TMT184- | ***iTEMP TMT184, headtransmitter PATemperature transmitter, Profibus-PA. Application: RTD, TC, Ohm, mV. Galvanic isolation. Profil V3.0. Curr. consumption 11mA Mounting: head form B, DIN43729. | 询价 |
| 71182602 | 密封5x O-ring 3.69x1.78 5x 0-ring 74.7x2.75 | 询价 |
| TA30H- | 接线盒 TA30HRetainer for terminal block or head transmitter + optional display. Design: explosion proof Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50#150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing). | 询价 |
| TA30D- | 接线盒 TA30DRetainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing). | 询价 |
| TA30A- | 接线盒 TA30ARetainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing). | 询价 |
| TMT182- | ***模块温度变送器 TMT182Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanic isolation Fault reaction: NAMUR NE 43. Mounting: head form B, DIN43729. UL listed. GL (German Llyod) Marine. | 询价 |
| TMT82- | 温度变送器 TMT822-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Presetting failure current high. Consider additional marine certificate requirements on application side. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508. | 询价 |
型号配置 / 参数对比
型号配置请输入产品型号进行配置
参数对比请在下面的输入框里输入需要对比的产品型号，最多支持三个产品对比
来源:Endress+Hauser网站公开信息
