技术参数
加入对比温度计
| 测量原理 | |
| 特性 / 应用 | 公制样式模块化温度组件通用应用范围适用于危险区域适用用于高过程 pressures 螺纹式过程连接带颈部至用途带保护套管 |
| 保护套管 | 至用途带保护套管 |
| 芯子 / 探头 | 矿物绝缘 (MI), 柔性 |
| 保护套管外径 / 芯子 | 芯子直径 3,0 mm (0,12'') 6,0 mm (0,24'') |
| 最大插入深度(按需) | 高达 30.000,00 mm (1.181,10'') |
| 保护套管材质 | 1.4404 (316L) 1.4571 (316Ti) 合金 600 |
| 可选涂层 | 不 defined |
| 过程连接 | 外螺纹螺纹: G1/2" NPT1/2" M14x1.5 M18x1.5 |
| 端部形状 | 直形 |
| 表面粗糙度 Ra | 0,8 μm (31,5 μ内.) |
| 工作温度范围 | 类型 K: 最大. 1.100 °C (最大. 2.012 °F) 类型 J: 最大. 800 °C (最大. 1.472 °F) |
| 最大过程压力(静压) | 在 20 °C: 500 bar (7.252 psi) |
| 测量精度 | 等级 1 符合 IEC 60584 |
| 响应时间 | 取决于配置 t50 = 1 s t90 = 2 s |
| 一体化表头变送器 | 是 (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| 防爆认证 | ATEX II NEPSI IECEx NEPSI EAC Ex |
| 认证 | GOST Metrology SIL (变送器仅) |

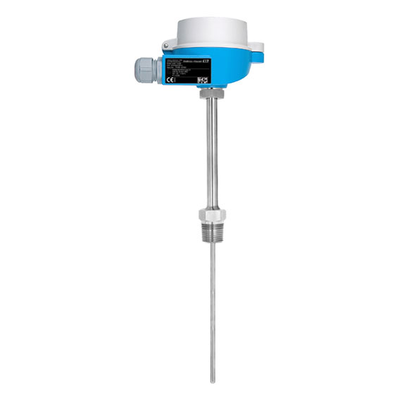

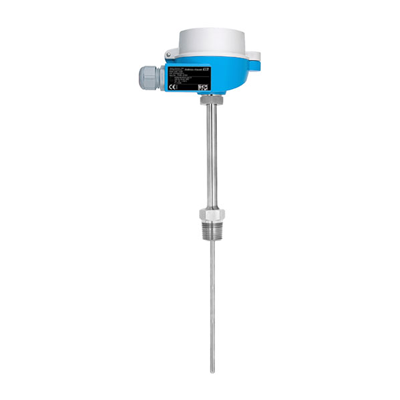

配置灵活、坚固耐用的温度计适合几乎所有行业应用，特别是食品化工行业。头部选装变送器的设备兼容所有通用通信协议，可即装即用，与直接连线的传感器相比，增强了测量精确度和可靠性。多种过程连接、规格和材质提供了应用的灵活性。
优势
模块化设计，采用符合DIN EN 50446的标准接线盒和客户指定的浸入长度，灵活性高
延伸颈采用配件压紧连接，长度可调，适用不同护套管
危险场所使用的保护类型：本质安全型（Ex ia)，无火花型（Ex nA）
头部变送器选择容易：模拟输出4至20 mA、HART®、PROFIBUS® PA或 FF现场总线
应用领域
通用型
适用于已有温度套管的测量场合
附件 / 备件 48
共 48 项备件 · 点击展开
| 订货号 | 名称 / 说明 | |
|---|---|---|
| 71312729 | 导热油 HSC 340, 100g | 询价 |
| 71249291 | 导热油 FDA认证 30g | 询价 |
| 71009889 | ***O-Ring 44,17x1,78 NBR70 labs free Bl | 询价 |
| 52028179 | 垫圈Profile gasket for cover Stainless steel housing F15 | 询价 |
| 60017971 | 显示屏Display LC for TA20J | 询价 |
| 71043745 | 大气补偿过滤口Consists of: filter plug plastic, Pressure compensation filter, O-ring. Usage: housing F15. Non Ex. | 询价 |
| 71313382 | 连接器 | 询价 |
| 71090687 | Fieldbus 接头 | 询价 |
| 71367414 | 铜密封圈Packing unit: 10 pieces | 询价 |
| 71367420 | 铜密封圈Packing unit: 10 pieces | 询价 |
| 71438347 | Spare parts kit copper ring M18Packing unit: 10 pieces | 询价 |
| 71367425 | 铜密封圈Packing unit: 10 pieces | 询价 |
| 71367427 | 垫片Packing unit: 10 pieces | 询价 |
| 71111510 | 陶瓷接线端 | 询价 |
| 71111514 | 陶瓷接线端 | 询价 |
| 71044061 | 设备包2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector | 询价 |
| 71389488 | 延长导线 TC IEC 2x type KL=180mm. Packing unit: 3 pieces | 询价 |
| 71389497 | 延长导线 TC IEC 2x type JL=180mm. Packing unit: 3 pieces | 询价 |
| TPC100- | 热电偶铠芯 TPC100Replaceable insert (MgO) | 询价 |
| TN15- | 延长颈 TN15Neck tube made from welded parts, with thread connection to a terminal head form DIN B and different connections to a separate thermowell. | 询价 |
| TA50- | 安装件 卡套接头TA50Screw in. | 询价 |
| TA20A- | ***接线盒 TA20AProduct Phased Out. Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100oC; ATEX: +95oC. | 询价 |
| TA20B- | 接线盒 TA20BConnecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black Ambient temperature: max. +80 oC Protection: IP65 | 询价 |
| TA20D- | **接线盒 TA20DProduct Phased Out. Connection head to mount a measuring insert with up to two head transmitters or a connection socket and one head transmitter. For mounting on armature or protection sleeve. Material: Aluminium, varnished Ambient temperature: max. +100 oC; ATEX: +95 oC. Protection: IP66 | 询价 |
| TA20J- | ***Terminal Head TA20JStainless steel AISI 316L / W1.4404 Max temperature 100 oC; ATEX: +95 oC, protection class IP66/IP67 | 询价 |
| TA20W- | **接线盒 TA20WProduct Phased Out. Connection head hinged to mount a measuring insert with head transmitter or connection socket. To be mounted on an armature or a protection sleeve. Material: Aluminium Area temperature: max. +100 oC; ATEX: +95 oC Protection: IP66 | 询价 |
| TA21E- | 接线盒 TA21ERetainer for terminal block or head transmitter. Cover: srewable. Material: Aluminum. Max. temp.: +100 oC; ATEX +95 oC. Protection: IP65. | 询价 |
| TMT85- | 温度变送器 TMT85Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose. | 询价 |
| TMT84- | 温度变送器 TMT84Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable. | 询价 |
| TMT82- | 温度变送器 TMT822-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Presetting failure current high. Consider additional marine certificate requirements on application side. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508. | 询价 |
| 71586415 | Spare parts kit O-ring TA20R44.17x1.78 EPDM labs free, black, Packing unit: 5 pieces | 询价 |
| TMT85- | 温度变送器 TMT85Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose. | 询价 |
| TMT84- | 温度变送器 TMT84Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable. | 询价 |
| TMT82- | 温度变送器 TMT822-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Presetting failure current high. Consider additional marine certificate requirements on application side. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508. | 询价 |
| TID10- | 温度变送器显示器TID10to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84. | 询价 |
| TXU10- | 仪表调试包 TXU10用于可以PC编程调试的设备 程序设置+用于带USB接口的PC的连接线 | 询价 |
| READWIN- | Readwin 2000调试包 READWINReadwin 2000 Operation + Read. software | 询价 |
| 71182602 | 密封5x O-ring 3.69x1.78 5x 0-ring 74.7x2.75 | 询价 |
| TA30P- | 接线盒 TA30PRetainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: Polyamid PA12 antistatic. Colour: black. Ambient temp.: -40...120oC (housing). Protection: IP65 (housing). | 询价 |
| TA30E- | ***Terminal Head TA30ERetainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing). | 询价 |
| TA30D- | 接线盒 TA30DRetainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing). | 询价 |
| TA30A- | 接线盒 TA30ARetainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing). | 询价 |
| TMT181- | ***iTEMP TMT181, Head Transmitter PCPProduct being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed. | 询价 |
| TMT182- | ***模块温度变送器 TMT182Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanic isolation Fault reaction: NAMUR NE 43. Mounting: head form B, DIN43729. UL listed. GL (German Llyod) Marine. | 询价 |
| FXA191- | ***Commubox FXA191Modem to connect smart devices with INTENSOR or HART protocol to personal computers. The signal circuit is intrinsically safe (Ex i a). The connection to the personal computer is realized with the inte- grated cable through the serial port. | 询价 |
| FXA195- | 通讯接口 FXA195Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508. | 询价 |
| TMT184- | ***iTEMP TMT184, headtransmitter PATemperature transmitter, Profibus-PA. Application: RTD, TC, Ohm, mV. Galvanic isolation. Profil V3.0. Curr. consumption 11mA Mounting: head form B, DIN43729. | 询价 |
| TM131- | 工业温度计 TM131Modular thermometer with resistance sensor or thermocouple. Metrical version with exchangeable insert for demanding applications in the chemical, oil/gas and power industry. With thermowell or to be installed into thermowell. Measuring range: -200...+1100oC/ -328...+2012oF (depending on the configuration). Consider additional marine certificate requirements on application side. ::Fastest response times for optimal process control through iTHERM QuickSens insert and fast response thermowell options. ::Maximum robustness for highest process safety through iTHERM StrongSens insert. ::Cost savings with recalibrations through iTHERM QuickNeck coupling ::Material selection for a wide range of applications. | 询价 |
型号配置 / 参数对比
型号配置请输入产品型号进行配置
参数对比请在下面的输入框里输入需要对比的产品型号，最多支持三个产品对比
测量原理视频
点击播放说明书下载 4
查看该型号全部资料服务案例
市政污水处理
市政污水处理 · 热电偶应用案例
项目背景
城市污水处理厂的进水、生化与出水工段。本次项目围绕热电偶展开，要解决的核心问题是：以热电偶测量高温工况温度。
工况挑战
现场介质与工况的特点是污水中含固率高、含腐蚀性组分，昼夜水量波动大，而且出水指标波动、探头易被污泥与生物膜覆盖。因此热电偶不能照搬通用配置，按温度上限、气氛与响应速度选分度号。
解决方案
阿仪科技技术团队按温度测量的方式推进：按测温点位置与响应要求做温度方案。配置上按温度上限、气氛与响应速度选分度号，并同步对照：出水须稳定达到一级 A 标准并联网上传数据。
实施效果
投运后系统运行稳定，实际效果是：耐高温能力强，炉窑温度可直接测。
食品饮料
食品饮料 · 热电偶应用案例
项目概况
项目现场在配料、杀菌、灌装与 CIP 清洗工段。客户希望在既有装置上完善热电偶配置，核心诉求是以热电偶测量高温工况温度。
技术难点
真正麻烦的是：介质多为糖浆、乳品与饮料等易结垢物料，卫生级要求高，并且清洗频繁，仪表必须耐受 CIP/SIP 高温碱洗。这些都要求热电偶在配置时按温度上限、气氛与响应速度选分度号。
配置方案
按温度测量组织供货与实施：按测温点位置与响应要求做温度方案。现场按温度上限、气氛与响应速度选分度号，并逐条核对：须满足食品安全与卫生级（3-A / EHEDG）要求。
投运表现
完成调试后，耐高温能力强，炉窑温度可直接测，测量数据可直接用于工艺调整与考核。
化工制药
化工制药 · 热电偶应用案例
现场工况
该客户属于化工制药行业，生产装置位于反应釜、计量罐与成品储罐区。项目的主要任务就是以热电偶测量高温工况温度。
需要解决的问题
难点在于介质腐蚀性强、常带溶剂与结晶，部分区域为爆炸性环境；与此同时强腐蚀与防爆双重约束，仪表寿命短、停机维护成本高。选型上必须按温度上限、气氛与响应速度选分度号。
我们的做法
我们采用温度测量的交付思路 — 按测温点位置与响应要求做温度方案。实施时按温度上限、气氛与响应速度选分度号，同时逐项校验：需满足防爆认证与 GMP 数据可追溯要求。
运行结果
系统投运以来表现稳定，日常维护量明显减少 — 耐高温能力强，炉窑温度可直接测。
电力能源
电力能源 · 热电偶应用案例
应用背景
锅炉给水、汽机凝结水与脱硫脱硝系统是电力能源行业的典型工况。项目以热电偶为切入点，重点是以热电偶测量高温工况温度。
工况约束
高温高压下测量漂移，非计划停机代价极高，而高温高压，蒸汽与含盐水并存的条件又进一步放大了这一点。因此热电偶必须按温度上限、气氛与响应速度选分度号。
交付方案
交付按温度测量来组织 — 按测温点位置与响应要求做温度方案。实施中按温度上限、气氛与响应速度选分度号，同时满足需满足电力行业规程与机组可用率指标。
使用效果
运行结果表明：耐高温能力强，炉窑温度可直接测，该测点的测量置信度明显提高。
