技术参数
加入对比温度计
| 测量原理 | |
| 特性 / 应用 | 公制样式模块化温度组件通用应用范围适用于危险区域螺纹式过程连接无颈部含 保护套管 / 保护套管 (金属) can 为使用带 StrongSens 芯子 |
| 保护套管 | 焊接保护套管 |
| 芯子 / 探头 | 矿物绝缘 (MI), 柔性 |
| 保护套管外径 / 芯子 | 8,0 mm (0,31") 9,0 mm (0,35'') 11,0 mm (0,43'') 12,0 mm (0,47'') 14,0 mm (0,55") 15,0 mm (0,59") |
| 最大插入深度(按需) | 高达 10.000,00 mm (393,70'') |
| 保护套管材质 | 1.4401 (316) 1.4404 (316L) 1.4571 (316Ti) |
| 可选涂层 | 不 defined |
| 过程连接 | 外螺纹螺纹: G3/8" G1/2" G3/4" NPT1/2" NPT3/4" M20x1.5 |
| 端部形状 | 直形缩径锥形 |
| 表面粗糙度 Ra | 不 defined |
| 工作温度范围 | PT100 TF StrongSens: -50 °C ...500 °C (-58 °F ...932 °F) PT100 WW: -200 °C ...600 °C (-328 °F ...1.112 °F) PT100 TF: -50 °C ...400 °C (-58 °F ...752 °F) |
| 最大过程压力(静压) | 在 20 °C: 75 bar (1088 psi) |
| 测量精度 | 等级符合 IEC 60751 等级 AA 符合 IEC 60751 |
| 响应时间 | 取决于配置 |
| 一体化表头变送器 | 是 (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| 防爆认证 | ATEX II1D Ex ia IIIC, II1G Ex ia IIC T6 ATEX II1/2D Ex ia IIIC,II1G Ex ia IIC T6 ATEX IECEx II1/2D Ex ta/tb IIIC Da/Db ATEX II1G Ex ia IIC T6 ATEX II 3 G Ex nA IIC T6, II3D NEPSI Ex ia IIC T6, Ex iaD 20 T85-T450 IECEx Ex ia IIC T6 Ga/Gb EAC Ex ia IIC T6 Ga + DIP NEPSI Ex nA IIC T6 |
| 认证 | GOST Metrology SIL (变送器仅) 船舶认证 |

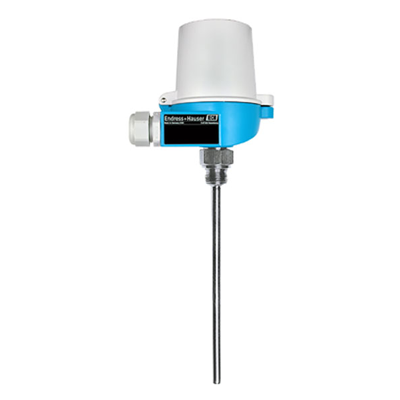

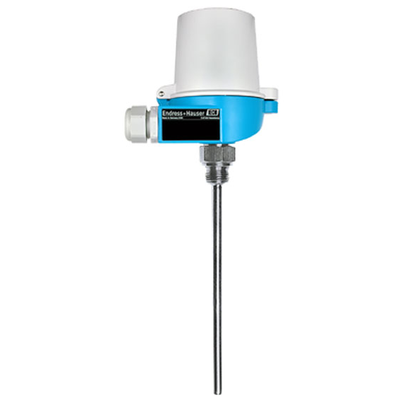

高度模块化、坚固耐用的温度计适合几乎所有行业应用。头部选装变送器的设备兼容所有通用通信协议，可即装即用，与直接连线的传感器相比，增强了测量精确度和可靠性。多种过程连接、规格和材质提供了应用的灵活性。
优势
模块化设计，采用符合DIN EN 50446的标准接线盒和客户指定的浸入长度，灵活性高
芯子兼容性高，设计符合DIN 43772标准
短锥/锥端部，加快反应时间
危险场所使用的保护类型：本质安全型（Ex ia)，无火花型（Ex nA）
头部变送器选择容易：模拟输出4至20 mA、HART®、PROFIBUS® PA或 FF现场总线
船级认证
附件 / 备件 50
共 50 项备件 · 点击展开
| 订货号 | 名称 / 说明 | |
|---|---|---|
| 71249291 | 导热油 FDA认证 30g | 询价 |
| 71312729 | 导热油 HSC 340, 100g | 询价 |
| 52028179 | 垫圈Profile gasket for cover Stainless steel housing F15 | 询价 |
| 60017971 | 显示屏Display LC for TA20J | 询价 |
| 52028207 | 视窗盖带密封垫Sight glass: Polycarbonat PC Gasket 67,5x2,9x1,5 VMQ/PTFE for use in non-hazardous area (EEx ia) Stainless steel housing F15 | 询价 |
| 52027000 | 不锈钢盖Gasket 67,5x2,9x1,5 VMQ/PTFE Stainless steel housing F15 | 询价 |
| 71043745 | 大气补偿过滤口Consists of: filter plug plastic, Pressure compensation filter, O-ring. Usage: housing F15. Non Ex. | 询价 |
| 71367414 | 铜密封圈Packing unit: 10 pieces | 询价 |
| 71367420 | 铜密封圈Packing unit: 10 pieces | 询价 |
| 71367424 | 铜密封圈Packing unit: 10 pieces | 询价 |
| 71367425 | 铜密封圈Packing unit: 10 pieces | 询价 |
| 71044061 | 设备包2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector | 询价 |
| 71367427 | 垫片Packing unit: 10 pieces | 询价 |
| 71313382 | 连接器 | 询价 |
| 71111513 | 陶瓷接线端 | 询价 |
| 71111514 | 陶瓷接线端 | 询价 |
| 71111515 | 陶瓷接线端 | 询价 |
| TPR100- | 热电阻芯 TPR100Mineral insulated cable (MgO) Replaceable insert acc.EN60751. max. measuring range: -200...600 oC (depending on configuration) | 询价 |
| TS111- | iTHERM TS111 芯子Replaceable insert acc. IEC 60751. Metric version acc. DIN 43735. ::Fastest response times for optimal process control through iTHERM QuickSens. ::Maximum robustness for highest process safety through iTHERM StrongSens. | 询价 |
| TW11- | ***保护套管 TW11to screw in Pipe-version, welded, DIN 43772 / 2G + 3G | 询价 |
| TMT85- | 温度变送器 TMT85Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose. | 询价 |
| TMT84- | 温度变送器 TMT84Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable. | 询价 |
| TMT82- | 温度变送器 TMT822-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Presetting failure current high. Consider additional marine certificate requirements on application side. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508. | 询价 |
| TA20A- | ***接线盒 TA20AProduct Phased Out. Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100oC; ATEX: +95oC. | 询价 |
| TA20B- | 接线盒 TA20BConnecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black Ambient temperature: max. +80 oC Protection: IP65 | 询价 |
| TA20D- | **接线盒 TA20DProduct Phased Out. Connection head to mount a measuring insert with up to two head transmitters or a connection socket and one head transmitter. For mounting on armature or protection sleeve. Material: Aluminium, varnished Ambient temperature: max. +100 oC; ATEX: +95 oC. Protection: IP66 | 询价 |
| TA20J- | ***Terminal Head TA20JStainless steel AISI 316L / W1.4404 Max temperature 100 oC; ATEX: +95 oC, protection class IP66/IP67 | 询价 |
| TA20R- | **接线盒 TA20RStainless steel AISI 316L W 1.4404. Max temperature 100 oC, ATEX: +95 oC. Protection class IP66/IP67 | 询价 |
| TA20W- | **接线盒 TA20WProduct Phased Out. Connection head hinged to mount a measuring insert with head transmitter or connection socket. To be mounted on an armature or a protection sleeve. Material: Aluminium Area temperature: max. +100 oC; ATEX: +95 oC Protection: IP66 | 询价 |
| TA21E- | 接线盒 TA21ERetainer for terminal block or head transmitter. Cover: srewable. Material: Aluminum. Max. temp.: +100 oC; ATEX +95 oC. Protection: IP65. | 询价 |
| 71586415 | Spare parts kit O-ring TA20R44.17x1.78 EPDM labs free, black, Packing unit: 5 pieces | 询价 |
| TMT85- | 温度变送器 TMT85Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose. | 询价 |
| TMT84- | 温度变送器 TMT84Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable. | 询价 |
| TMT82- | 温度变送器 TMT822-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Presetting failure current high. Consider additional marine certificate requirements on application side. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508. | 询价 |
| TID10- | 温度变送器显示器TID10to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84. | 询价 |
| TXU10- | 仪表调试包 TXU10用于可以PC编程调试的设备 程序设置+用于带USB接口的PC的连接线 | 询价 |
| READWIN- | Readwin 2000调试包 READWINReadwin 2000 Operation + Read. software | 询价 |
| TA30P- | 接线盒 TA30PRetainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: Polyamid PA12 antistatic. Colour: black. Ambient temp.: -40...120oC (housing). Protection: IP65 (housing). | 询价 |
| TA30E- | ***Terminal Head TA30ERetainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing). | 询价 |
| TA30D- | 接线盒 TA30DRetainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing). | 询价 |
| TA30A- | 接线盒 TA30ARetainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing). | 询价 |
| TMT182- | ***模块温度变送器 TMT182Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanic isolation Fault reaction: NAMUR NE 43. Mounting: head form B, DIN43729. UL listed. GL (German Llyod) Marine. | 询价 |
| TMT180- | ***模块温度变送器 TMT180Product Phased Out. Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed. | 询价 |
| TMT181- | ***iTEMP TMT181, Head Transmitter PCPProduct being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed. | 询价 |
| FXA191- | ***Commubox FXA191Modem to connect smart devices with INTENSOR or HART protocol to personal computers. The signal circuit is intrinsically safe (Ex i a). The connection to the personal computer is realized with the inte- grated cable through the serial port. | 询价 |
| FXA195- | 通讯接口 FXA195Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508. | 询价 |
| TMT184- | ***iTEMP TMT184, headtransmitter PATemperature transmitter, Profibus-PA. Application: RTD, TC, Ohm, mV. Galvanic isolation. Profil V3.0. Curr. consumption 11mA Mounting: head form B, DIN43729. | 询价 |
| DIENST- | 服务Attention: Please note the instructions for DIENST-F/T in the option text! | 询价 |
| XPRFID- | Spare RFID TAGConsists of: RFID TAG, fixing wire, crimp sleeve. | 询价 |
| TM131- | 工业温度计 TM131Modular thermometer with resistance sensor or thermocouple. Metrical version with exchangeable insert for demanding applications in the chemical, oil/gas and power industry. With thermowell or to be installed into thermowell. Measuring range: -200...+1100oC/ -328...+2012oF (depending on the configuration). Consider additional marine certificate requirements on application side. ::Fastest response times for optimal process control through iTHERM QuickSens insert and fast response thermowell options. ::Maximum robustness for highest process safety through iTHERM StrongSens insert. ::Cost savings with recalibrations through iTHERM QuickNeck coupling ::Material selection for a wide range of applications. | 询价 |
型号配置 / 参数对比
型号配置请输入产品型号进行配置
参数对比请在下面的输入框里输入需要对比的产品型号，最多支持三个产品对比
测量原理视频
点击播放说明书下载 4
查看该型号全部资料服务案例
市政污水处理
市政污水处理 · 热电阻应用案例
项目概况
项目现场在城市污水处理厂的进水、生化与出水工段。客户希望在既有装置上完善热电阻配置，核心诉求是以铂电阻元件做高精度温度测量。
技术难点
真正麻烦的是：污水中含固率高、含腐蚀性组分，昼夜水量波动大，并且出水指标波动、探头易被污泥与生物膜覆盖。这些都要求热电阻在配置时按精度等级、线制与插深选 Pt100 / Pt1000。
配置方案
按温度测量组织供货与实施：按测温点位置与响应要求做温度方案。现场按精度等级、线制与插深选 Pt100 / Pt1000，并逐条核对：出水须稳定达到一级 A 标准并联网上传数据。
投运表现
完成调试后，低温段精度优势明显，工艺窗口更可控，测量数据可直接用于工艺调整与考核。
食品饮料
食品饮料 · 热电阻应用案例
现场工况
该客户属于食品饮料行业，生产装置位于配料、杀菌、灌装与 CIP 清洗工段。项目的主要任务就是以铂电阻元件做高精度温度测量。
需要解决的问题
难点在于介质多为糖浆、乳品与饮料等易结垢物料，卫生级要求高；与此同时清洗频繁，仪表必须耐受 CIP/SIP 高温碱洗。选型上必须按精度等级、线制与插深选 Pt100 / Pt1000。
我们的做法
我们采用温度测量的交付思路 — 按测温点位置与响应要求做温度方案。实施时按精度等级、线制与插深选 Pt100 / Pt1000，同时逐项校验：须满足食品安全与卫生级（3-A / EHEDG）要求。
运行结果
系统投运以来表现稳定，日常维护量明显减少 — 低温段精度优势明显，工艺窗口更可控。
化工制药
化工制药 · 热电阻应用案例
应用背景
反应釜、计量罐与成品储罐区是化工制药行业的典型工况。项目以热电阻为切入点，重点是以铂电阻元件做高精度温度测量。
工况约束
强腐蚀与防爆双重约束，仪表寿命短、停机维护成本高，而介质腐蚀性强、常带溶剂与结晶，部分区域为爆炸性环境的条件又进一步放大了这一点。因此热电阻必须按精度等级、线制与插深选 Pt100 / Pt1000。
交付方案
交付按温度测量来组织 — 按测温点位置与响应要求做温度方案。实施中按精度等级、线制与插深选 Pt100 / Pt1000，同时满足需满足防爆认证与 GMP 数据可追溯要求。
使用效果
运行结果表明：低温段精度优势明显，工艺窗口更可控，该测点的测量置信度明显提高。
电力能源
电力能源 · 热电阻应用案例
客户情况
电力能源行业的典型场景是锅炉给水、汽机凝结水与脱硫脱硝系统。本次测量对象为热电阻，工作重点是：以铂电阻元件做高精度温度测量。
面临的难点
现场工况为高温高压，蒸汽与含盐水并存，加上高温高压下测量漂移，非计划停机代价极高，常规配置很难长期胜任。方案需要按精度等级、线制与插深选 Pt100 / Pt1000。
实施方式
方案由温度测量落地：按测温点位置与响应要求做温度方案。技术要点在于按精度等级、线制与插深选 Pt100 / Pt1000，并确保符合：需满足电力行业规程与机组可用率指标。
客户收益
实际效果上，低温段精度优势明显，工艺窗口更可控，现场运维人员的工作负担随之下降。
