技术参数
加入对比液体
| 测量原理 | 电磁 |
| Product headline | Versatile 标准流量计用于水和污水工业. Reliable 测量在常数精度带 0 x DN inlet run 和否压力 loss. Ideal 用于水测量, e.g. 饮用水, utility 水和 industrial/municipal 污水. |
| 传感器 features | 柔性工程 – 传感器带固定或 lap-joint 过程连接. 应用 fitness – EN ISO 12944 腐蚀防护用于 underground 或 underwater 安装. Improved plant availability – 传感器 compliant 带工业特定要求. 国际饮用水认证. 防护等级 IP68 (类型 6P 外壳). 批准用于 custody transfer 至 MI-001/OIML R49. |
| 变送器 features | 安全操作 – 否 need 至开设备 due 至显示带触摸控制, background lighting. 时间‐节省就地操作无附加软件和紧固件 – 集成 web 服务器. 集成验证 – Heartbeat 技术. 变送器外壳制造的 durable polycarbonate 或铝. WLAN 访问. 集成数据 logger: 被测值监测. |
| 公称直径量程 | DN 25 至 3000(1 至 120") |
| 接液材质 | Liner 材料 hard 橡胶: 0 至 +80 °C (+32 至 +176 °F) Liner 材料 polyurethane: –20 至 +50 °C (–4 至 +122 °F) Liner 材料 PTFE: –20 至 +90 °C (–4 至 +194 °F) 电极: 1.4435 (316L); 合金 C22, 2.4602 (UNS N06022); 钽 |
| 被测 variables | 体积流量, 电导率, 质量流量 |
| 最大. 测量 error | 体积流量 (标准): ±0.5 % o.r. ± 1 mm/s (0.04 内/s) 体积流量 (选项): ±0.2 % o.r. ± 2 mm/s (0.08 内/s), 平面规格 |
| 测量范围 | 0.5 m3/h 至 263000 m3/h (2.5gal/最小至 1665 Mgal/d) |
| 最大. 过程压力 | PN 40, 等级 300, 20K |
| 介质温度量程 | Liner 材料 hard 橡胶: 0 至 +80 °C (+32 至 +176 °F) Liner 材料 polyurethane: –20 至 +50 °C (–4 至 +122 °F) Liner 材料 PTFE: –20 至 +90 °C (–4 至 +194 °F) |
| 环境温度量程 | Liner 材料 hard 橡胶: 0 至 +80 °C (+32 至 +176 °F) Liner 材料 polyurethane: –20 至 +50 °C (–4 至 +122 °F) |
| 传感器外壳材料 | DN 25 至 300 (1 至 12"): AlSi10Mg, 涂层 DN 25 至 3000 (1 至 78"): 碳钢带防护 varnish 传感器连接外壳 (标准): AlSi10Mg, 涂层传感器连接外壳 (选项): Polycarbonate |
| 变送器外壳材料 | Polycarbonat; AlSi10Mg, 涂层 |
| 防护等级 | 紧凑型版本: IP66/67, 类型 4X 外壳传感器远程版本 (标准): IP66/67, 类型 4X 外壳传感器远程版本 (选项): IP68, 类型 6P 外壳, 带防护 varnish 按照至 EN ISO 12944 C5‐M/Im1/Im2/Im3 变送器远程版本: IP66/67, 类型 4X 外壳 |
| 显示/操作 | 4‐系列背光显示带触摸控制 (操作从外部) 配置通过就地显示, web browser 和操作工具可选 |
| 输出 | 3 ouputs: 0‐20 mA/4‐20 mA HART (有源) 脉冲/频率/开关输出 (无源) 脉冲/频率输出 (无源) 开关输出 (无源) |
| Inputs | 状态输入 |
| 数字通信 | HART, PROFIBUS DP, EtherNet/IP, Modbus RS485 |
| 电源 | AC 100…240 V / AC/DC 24 V |
| 危险区域认证 | cCSAus |
| Metrological 认证和证书 | 校准执行在认可校准设施 (符合 ISO/IEC 17025), NAMUR Custody transfer 按照至 MI‐001 或 OIML R49 (可选等级 I 内组合带 0DN inlet run) |
| 压力认证和证书 | CRN |
| 材料证书 | 3.1 材料 |
| 卫生型认证和证书 | 饮用水认证: ACS, KTW-BWGL, NSF 61, WRAS BS 6920 |

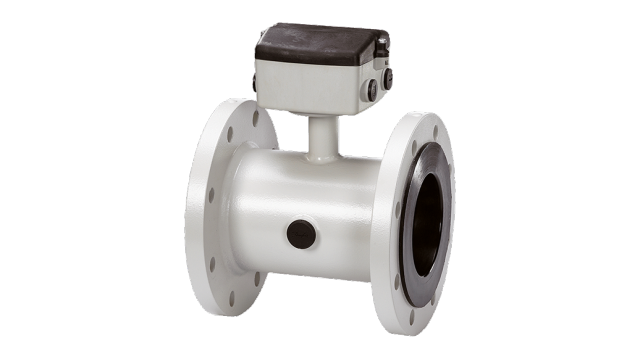

Promag W 是通过防腐认证的专业产品，适用于水和污水行业的各类应用以及计量交接。同时，也是直接地下安装或永久性水下使用的理想解决方案。
优势
适于地下直埋或长期水下使用-经过认证的传感器
长时间操作安全可靠 - 全焊接式传感器牢固耐用
灵活的工程设计 - 传感器无前后直管段，节省了空间
操作安全 - 背光显示、触摸控制，无需开启设备
无需增加硬件和软件即可提供本地化操作，节约时间-集成网络服务器
集成验证 - Heartbeat Technology
免维护 – 无可动部件
应用领域
双向流量测量，完全不受压力、密度、温度和粘度的影响。
在水和污水行业中最苛刻应用的专家
仪表特点:
附件 / 备件 51
共 51 项备件 · 点击展开
| 订货号 | 名称 / 说明 | |
|---|---|---|
| XPD0014- | **电子插件 Promag 400 Index CComplete main electronic module or power supply, I/O-board and amplifier as individual boards. Complete main electronic module contains: Power supply, I/O-board, amplifier, board carrier, terminal connection, ribbon cable, installation marterial. Individual boards contains: Installation marterial, Power supply incl. terminal connection/ I/O-board incl. terminal connection/ Amplifier incl. ribbon cable. | 询价 |
| XPD0014- | **电子插件 Promag 400 Index CComplete main electronic module or power supply, I/O-board and amplifier as individual boards. Complete main electronic module contains: Power supply, I/O-board, amplifier, board carrier, terminal connection, ribbon cable, installation marterial. Individual boards contains: Installation marterial, Power supply incl. terminal connection/ I/O-board incl. terminal connection/ Amplifier incl. ribbon cable. | 询价 |
| XPD0040- | 电磁 400 Index C 升级Complete main electronic module or power supply, I/O module with amplifier as individual boards. Complete main electronic module contains: Power supply, I/O module, amplifier, board carrier, terminals, ribbon cable, installation marterial. Individual boards contains: Installation marterial, Power supply incl. terminals/ I/O module incl. terminal connection and amplifier incl. ribbon cable. | 询价 |
| XPD0040- | 电磁 400 Index C 升级Complete main electronic module or power supply, I/O module with amplifier as individual boards. Complete main electronic module contains: Power supply, I/O module, amplifier, board carrier, terminals, ribbon cable, installation marterial. Individual boards contains: Installation marterial, Power supply incl. terminals/ I/O module incl. terminal connection and amplifier incl. ribbon cable. | 询价 |
| XPD0040- | 电磁 400 Index C 升级Complete main electronic module or power supply, I/O module with amplifier as individual boards. Complete main electronic module contains: Power supply, I/O module, amplifier, board carrier, terminals, ribbon cable, installation marterial. Individual boards contains: Installation marterial, Power supply incl. terminals/ I/O module incl. terminal connection and amplifier incl. ribbon cable. | 询价 |
| XPD0040- | 电磁 400 Index C 升级Complete main electronic module or power supply, I/O module with amplifier as individual boards. Complete main electronic module contains: Power supply, I/O module, amplifier, board carrier, terminals, ribbon cable, installation marterial. Individual boards contains: Installation marterial, Power supply incl. terminals/ I/O module incl. terminal connection and amplifier incl. ribbon cable. | 询价 |
| XPD0017- | 显示模块 4-wire,400 Index CUsage: Promag 400 Index C, Prosonic Flow 400 Index B. | 询价 |
| 71228789 | 接线端子Usage: Prosonic Flow 400, Promag 400(C), (C) = generation index C. Consists of: Connection terminal 3-Pol stamp 1,2, Connection terminal 2-Pol stamp A,B, Connection terminal 4-Pol stamp 20-23, Connection terminal 4-Pol stamp 24-26. | 询价 |
| 71228790 | 分体式连接板组件Usage: Promag 400(C) with sensor D/L/W. (C) = generation index C. | 询价 |
| 71228795 | 分体式连接板组件Usage: Promag 400(C) with sensor L/W. (C) = generation index C. | 询价 |
| 71615503 | 接线板Usage: Promag 400(C) sensor L/W non-haz, Promag 800(C) sensor W non-haz. (C) = generation index C, Sensor connection housing. Consists of: connection board. | 询价 |
| 71615504 | 接线板Usage: Promag 400(C) sensor W non-haz. (C) = generation index C. Sensor connection housing. Consists of: connection board. | 询价 |
| 71185788 | T-DAT模块 | 询价 |
| 71228788 | ***Kit cover, polycarbon., Promag 400(C)(C) = generation index C. Consists of: Cover plastic complete, O-Ring 196,44x3,53 VMQ, 2x hinge pin L= 58mm plastic. | 询价 |
| 71443262 | ***表盖Usage: Promag 400 (C) (C) = generation index C. Consists of: Version 1: cover polycarbonate complete, 2x hinge pin L= 58mm plastic. Version 2: cover polycarbonate complete, O-Ring 196,44x3,53 VMQ, wire with screw lock 1,5x150. | 询价 |
| 71408508 | 表盖Usage: Promag/Prosonic Flow 400, Promag/Promass/Prosonic Flow/t-mass/ Teqwave MW 500 digital, Promag 800(C), (C) = generation index C, transmitter housing polycarbonate. Consists of: cover polycarbonate complete, O-Ring 196,44x3,53 VMQ, default and -50oC/-58oF, wire with screw lock 1,5x150. | 询价 |
| 71384170 | Promag400/500表盖Usage: Prosonic Flow 400, Promag 400(C), (C) = generation index C, Promag/Promass/Prosonic Flow/t-mass/ Teqwave MW 500 digital, transmitter housing Alu. Consists of: cover Alu complete included O-Ring 196,40x3,53 VMQ, default and -50oC/-58oF, wire with screw lock 1,5x150. | 询价 |
| 71228796 | 表盖组件Usage: Promag 10/500, Promass 500, Promag/Promass/Prosonic Flow/t-mass/ Teqwave MW 500 digital, Promag 400/800(C), (C) = generation index C, sensor connection housing. Consists of: cover Alu, O-Ring 113,90x3,53 HNBR. | 询价 |
| 71188176 | 表盖组件Usage: Promag 10/400/500/800, Promag 400/800(C), (C) = generation index C, sensor connection housing. Consists of: cover plastic coated, O-Ring 91,67 x 3,53 FKM. | 询价 |
| 71278077 | 表盖聚碳酸酯垫圈Usage: Prosonic Flow 400, Promag/Promass/Prosonic Flow/t-mass/ Teqwave MW 500 digital, Promag 400/800(C), (C) = generation index C, transmitter housing polycarbonate. Consists of: 10x O-Ring 196,44x3,53 VMQ. | 询价 |
| 71278078 | 表盖密封圈Usage: Prosonic Flow 400, Promag 400(C), (C) = generation index C, Promag/Promass/Prosonic Flow/t-mass/ Teqwave MW 500 digital, transmitter housing Alu. Consists of: 10x O-Ring 196,40x3,53 VMQ, default and -50oC/-58oF. | 询价 |
| 71188179 | 表盖密封圈Usage: Promag 10/400/500/800, Promag 400/800(C), (C) = generation index C, sensor connection housing. Consists of: 10x O-Ring 91,67 x 3,53 FKM. | 询价 |
| 71228793 | 外壳密封圈组件Usage: Promag 400(C) with sensor D/L/W. (C) = generation index C. Consists of: Gasket HNBR for housing/sensor D/L/W. O-Ring 29,87x1,78 HNBR for sensor- plug L/W. | 询价 |
| 71228798 | 外壳密封圈组件Usage: Promag 10/500, Promag 500 digital, Promag 400/800(C), (C) = generation index C, sensor connection housing. Consists of: O-Ring 113,90x3,53 HNBR for cover, gasket HNBR for housing/sensor L/P/W, O-Ring 29,87x1,78 HNBR for sensor plug. | 询价 |
| 71488159 | 接口垫圈Usage: Promag 400/800(C), (C) = generation index C, transmitter housing polycarbonate. Consists of: O-ring 69,44x3,53VMQ for interface, O-ring 29,87x1,78 HNBR for sensor plug. | 询价 |
| 71488160 | 外壳垫圈组件Usage: Promag 10/400/500/800(C), (C) = generation index C, sensor connection housing alu. Consists of: O-ring 113,90X3,53HNBR for cover, O-ring 69,44x3,53HNBR for housing/sensor O-ring 29,87x1,78 HNBR for sensor plug. | 询价 |
| 71555931 | Kit interface gaskets,compact,WG DN<=300Usage: Promag 400(C), (C) = generation index C, transmitter housing alu. Consists of: O-ring 69,44x3,53 HNBR for interface, O-ring 29,87x1,78 HNBR for sensor plug. | 询价 |
| 71228794 | 外壳密封圈组件Usage: Promag 400(C) with sensor D/L/W. (C) = generation index C. Consists of: 4x screw M5x18 hex cap DIN912 pla, 4x spring washer M5 DIN7980 st.pla, for housing/sensor. | 询价 |
| 71236702 | 缆塞 | 询价 |
| 50096840 | 缆塞Kit 10 cable glands M20x1,5 | 查看详情 |
| 71236703 | 转接头 | 询价 |
| 50098041 | 转接头Kit 10 extension M20x1.5/G 1/2" | 询价 |
| 71236704 | 转接头 | 询价 |
| 50098042 | 转接头Kit 10 extension M20x1.5/NPT 1/2" | 查看详情 |
| 71236705 | 缆塞 | 询价 |
| 71029350 | 传感器缆塞 | 询价 |
| 71236706 | 插接头组件 | 询价 |
| 71276494 | 卡箍紧固，螺丝Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass, Promag/Promass 500, Promag 10, Promag/Promass/Prosonic Flow/t-mass/ Teqwave MW 500 digital, Promag 400/800(C), (C) = generation index C, sensor connection housing. Consists of: cover clamp, screw M4x16. | 询价 |
| 71279175 | 螺丝密封Usage: Transmitter housing alu: Promag 400(C), 500 digital. (C) = generation index C. Consists of: Screw sealing M4x35. | 询价 |
| 71555753 | Kit sealing, transm./sensor, alu, castUsage: Transmitter housing alu, cast: Promag 300, 500. Sensor housing alu, cast: 300/500/800, 500 digital. (C) = generation index C. Consists of: 3x securing clamps, 3x sealing screws M4x16. | 询价 |
| 71279174 | 密封圈Usage: Sensor housing polycarbonate: Promag 400(C), 500, 800. (C) = generation index C. Consists of: Sealing ring 1.4404. | 询价 |
| 50093681 | 可更换电路板 | 询价 |
| 71228792 | 显示保护盖Usage: Prosonic Flow 400, Promag 400(C), (C) = generation index C, Promag/Promass/Prosonic Flow/t-mass/ Teqwave MW 500 digital, transmitter housing Alu. Consists of: display protection 1.4301, installation material. | 询价 |
| 71343504 | 防护外壳组件Usage: Promag/Promass/Prosonic Flow/t-mass/ Teqwave MW 400/800/500 digital, transmitter housing. Consists of: weather protection cover 4404. | 询价 |
| 5X4CXX- | 变送器转换组件 Promag 400Same housing for compact/remote version. Corrosion-resistant transmitter version. With an integrated web server. Important: Transmitter only for remote design (feature 015/A; feature 020/P/N). Connection board incl. S-DAT of original transmitter has to be reused in the new transmitter only. Conversion kit (feature 015/B/C/D/E/F/G/H/I): For conversion of an already existing Promag to the new device generation or to another device version. Consists of all required conversion parts. | 询价 |
| DK5005- | 变送器安装组件 400Usage: Promag 400/800, transmitter advanced. | 询价 |
| DK5019- | 传感器电缆组件, PromagConnection Cable between Sensor Junction Housing and Transmitter for Remote Devices of Proline Promag. | 询价 |
| DK5GD- | 接地环 DK5GDIncludes 1 grounding disc/protection disc | 询价 |
| DK5GC- | 接地线 DK5GCA kit includes 2 cables | 询价 |
| XPRFID- | Spare RFID TAGConsists of: RFID TAG, fixing wire, crimp sleeve. | 询价 |
| XPSPEC- | 位号备件Attention: Only 1 piece per position orderable in offer/order because of item category group ZTA1. Consists of: TAG, fixing wire, crimp sleeve. | 询价 |
