825521 Alyza IQ PO4-121

Orthophosphate analyzer Alyza IQ PO4 for the IQ Sensor Net, Measurement range 2, 1-channel with pump. Scope of delivery: Orthophosphate analyzer for indoor and outdoor use, spare parts for the first year, pre-installed 2 m SNCIQ and power cables (please order controller and reagents separately).
用于IQ传感器网络的正磷酸盐分析仪Alyza IQ PO4，测量范围2，带泵的1通道。交付范围：室内外正磷酸盐分析仪、第一年备件、预装2m SNCIQ和电源线（请分别订购控制器和试剂）。

售价：

¥ 0.00

原价： ¥0.00

ꄑ关注：0

服务：现货现款･ 48小时快速处理･含税运。

数量： ꄷ ꄸ

产品详情

The perfect solution to support phosphate elimination as well as phosphate load monitoring – on-site analyzer for orthophosphate measurement in the IQ SENSOR NET

Orthophosphat analyzer for the IQ SENSOR NET

Minimized reagent consumption and waste
Simple Service-Regular maintenance takes only 10 minutes every 3 months
Reliable results from low to high measuring levels
Compatible with IQ SENSOR NET

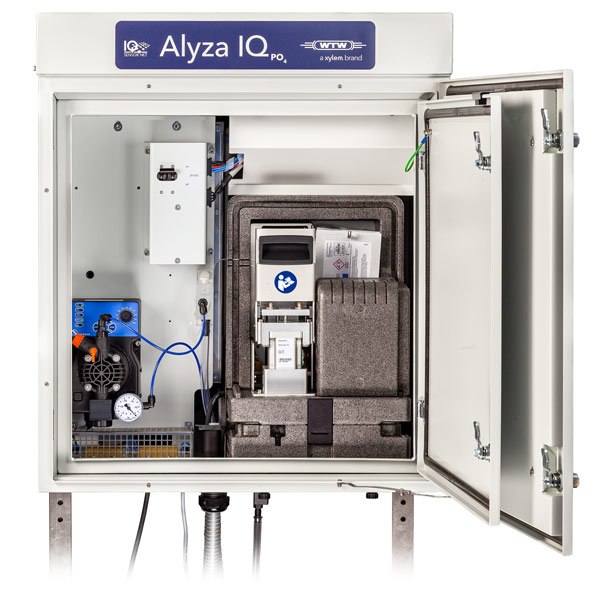

The Alyza IQ PO₄ orthophosphate analyzer is another component for the IQ SENSOR NET. It can be easily integrated into new and existing systems just as simple as a sensor. The measuring principle is based on the photometric yellow method (molybdate vanadate), which has been a proven detection method for orthophosphate. Thanks to the wet chemical measurement directly in the process, Alyza IQ is the perfect solution to support phosphate elimination as well as monitoring the phosphate load.

Highlights:

Minimized reagent consumption and waste
Alyza IQ boasts an extremely low use of reagents - an advantage that significantly reduces operating costs and waste generation
Simple Service
Regular maintenance takes only 10 minutes every 3 months.
Reliable results from low to high measuring levels
Thanks to the new technology, Alyza IQ provides an accurate and reliable measurement over the whole range of 0.02-15.00 mg/l and 0.2-50.0 mg/l PO₄-P.
Automatic cleaning and calibration with standards
The fully automated cleaning as well as 1- or 2-point calibration with selectable intervals ensures an exceptional degree of operational safety.
On-site installation
Alyza IQ PO₄ can be installed directly at the basin. This guarantees short transport distances and promptly measured values. Thanks to the climate package, the analyzer is perfectly suited for all weathers.

Models:

Alyza IQ PO₄-110 PO₄ analyzer, measurement range 1, 1-channel
Alyza IQ PO₄-111 PO₄ analyzer, measurement range 1, 1-channel, incl. pump
Alyza IQ PO₄-112 PO₄ analyzer, measurement range 1, 2-channel, incl. pump
Alyza IQ PO₄-120 PO₄ analyzer, measurement range 2, 1-channel
Alyza IQ PO₄-121 PO₄ analyzer, measurement range 2, 1-channel, incl. pump
Alyza IQ PO₄-122 PO₄ analyzer, measurement range 2, 2-channel, incl. pump

Applications:

Precipitation control
Wastewater treatment plant effluent monitoring

Alyza IQ PO₄	-110	-111	-112	-120	-121	-122
*Order No.*	*825510*	*825511*	*825512*	*825520*	*825521*	*825522*
detailed technical data see data sheet D2.25
Measurement method	Molybdate-Vanadate method (Yellow method)
Measurement range	MR1: 0.02 … 15.00 mg/l PO₄-P			MR2: 0.2 … 50.0 mg/l PO₄-P
Displayed:	0.00 … 15.00 mg/l PO₄-P			0.0 … 50.0 mg/l PO₄-P
Resolution:	0.01 mg/l PO₄-P			0.05 mg/l PO₄-P
Accuracy:	±2 % ±0.02 mg/l			±2 % ±0.2 mg/l
Sample streams/channels	1	1	2	1	1	2
Cleaning	Automatic cleaning with cleaning solutions
Calibration	Automatic 1- and 2-point calibrations
Operational temperature	-4 ... 104 °F (-20 … +40) °C
