301720 LR 925/01
2-electrode-IDS conductivity cell with stainless steel electrodes for ultra pure water, cell constant 0.1 cm–1, with 1.5 m fixed cable with waterproof digital connector, glass flow trough vessel.
2电极-IDS电导池，带不锈钢电极，用于超纯水，池常数为0.1 cm-1，带1.5米固定电缆，带防水数字连接器，玻璃流槽容器。
2电极-IDS电导池，带不锈钢电极，用于超纯水，池常数为0.1 cm-1，带1.5米固定电缆，带防水数字连接器，玻璃流槽容器。
售价：
¥
0.00
原价：
¥0.00
ꄑ关注：0
-

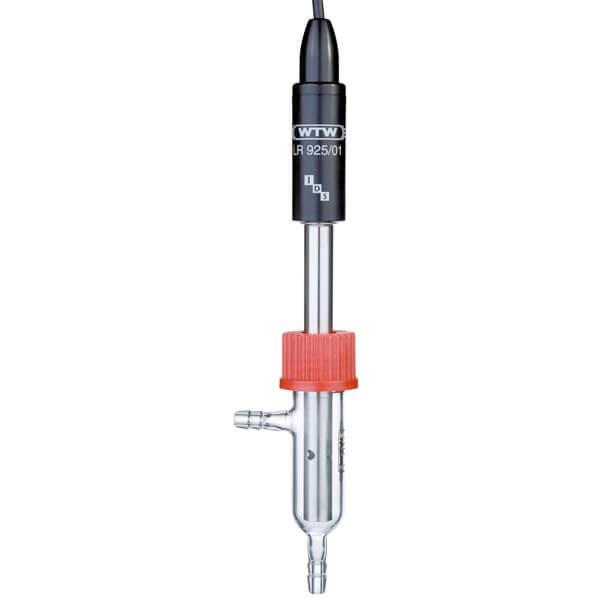

LR 925/01 IDS Ultrapure Water Conductivity Cell
IDS - Stainless Steel Electrode - Temperature Sensor - Stainless Steel Shaft
LR 925/01, 925/01-P: Digital conductivity measurement in low conducting samples - measurements in ultra pure water with proven two-electrode technology
Variants Order-No. Name Attributes 301720 LR 925/01 1,5 m fixed cable with water-proof digital plug 301722 LR 925/01-P Plug head for AS/IDS-x cable or IDS WLM-S wireless module Highlights:
- Proven two-electrode technology
- Glass flow trough vessel
- Temperature sensor
- Easy handling, robust design
- Automatic transfer of cell constant and temperature compensation
- Main application measurement of ultra pure water
LR 925/01 925/01-P Order-No. 301720 301722 Type 2-Pol Electrode Material Stainless Steel Shaft Material Stainless Steel Temperature Sensor NTC 30 kOhm Cell Constant 0,100 cm-1 ± 2 % Measuring Range 0,01 μS/cm ... 200 μS/cm Temperature Range -5 ... 70 °C (100 °C) Min./Max. Immersion depth Minimal: 30 mm
Maximal: Whole sensor + cable up to 70 °C
Sensor shaft only (=120 mm) up to 100 °CShaft length 120 mm Shaft diameter 12 mm Connection 1,5 m fixed cable with water-proof digital plug Plug head for AS/IDS-x cable or IDS WLM-S wireless module
