208464 TS 700/4-i
用于4个BOD OxiTop®系统（每个系统12个标准瓶）的孵化器柜，230 VAC，50 Hz，制冷剂R-600a。
-

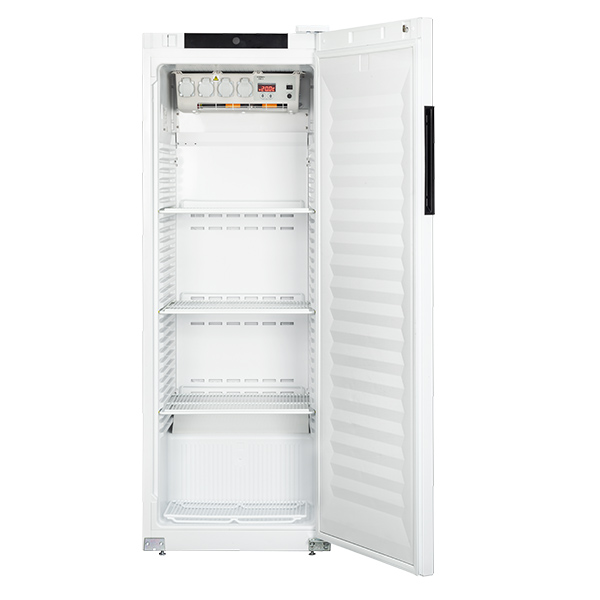

Thermostatic cabinets for incubation
Thermostatic cabinets for the incubation of respirometric samples at constant temperatures between 10° and 40°C – cost efficient and energy efficient
Variants Art.-No. Name Description 208450 TS 608/2-i 180 l volume, 160 watt, max. two stirring platforms 208452 TS 608-G/2-i 180 l volume, 320 watt, max. two stirring platforms, insulated glass door 208464 TS 700/4-i 317 l volume, 380 watt, max. four stirring platforms 208466 TS 700-G/4-i 337 l volume, 380 watt, max. four stirring platforms, insulated glass door 208468 TS 1010-i 534 l volume, 380 watt, special applications
Thermostatic cabinets by Xylem Analytics WTW are excellent choices for respirometric measurements with OxiTop® systems. In a specified temperature range, they yield a deviation of ±0,5 K in relation to the set temperature and can be adjusted in steps of 1° C. The heating with the radial blower for constant temperature is equipped with sockets for the stirring platforms.Highlights:
- Incubation conforming to standards
- Cost-effective solution for respirometric test procedures
- Models with glass doors for visual control
- Suited for BOD, OECD 301F, soil respiration, anaerobic degradation
- Temperature adjustable in steps of 1 K between 10° and 40 °C
- Eco-friendly refrigerant R600a
TS 608/2-i:
Compact thermostatic cabinet for up two OxiTop® IS 12 stirring platforms. It is easy to integrate into the working environment and perfectly suited for standard applications. It has two internal plugs for connecting stirring platforms.TS 608-G/2-i:
As above but with a door made of insulation glass. Allows visual checking of the OxiTop® heads without opening the door.TS 700/4-i:
Thermostatic cabinet for extensive sample processing. Capable of simultaneous measurement of up to four IS 12 stirring platforms. It has four internal plugs for connecting stirring platforms.TS 700-G/4-i:
As TS 700/4-i but with a door made of insulation glass. Allows visual checking of the OxiTop® heads without opening the door.TS 1010-i:
A thermostatic cabinet for special applications. With extra space for special vessels e.g. biogas or soil respiration measurement. It has four internal plugs for connecting stirring platforms.-
Thermostatic cabinet TS 608/2-i TS 608-G/2-i Art.-No. 208450 208452 Volume (l) 180 Outer dimensions HxWxD (mm) 850 x 600 x 600 Inner dimensions HxWxD (mm) 702 x 513 x 441 Net weight (kg) 34 43 Control range 10 °C … 40 °C Increment 1 K Temperature stability ±0,5 K Max. power consumption (W) 160 320 Internal sockets 2 Thermostatic cabinet TS 700/4-i TS 700-G/4-i TS 1010-i Art.-No. 208464 208466 208468 Volume (l) 317 337 534 Outer dimensions HxWxD (mm) 1684 x 597 x 654 1684 x 747 x 769 Inner dimensions HxWxD (mm) 1459 x 475 x 423 1459 x 625 x 539 Net weight (kg) 53 69 69 Control range 10 °C … 40 °C Increment 1 K Temperature stability ±0,5 K Max. power consumption (W) 380 380 380 Internal sockets 4
