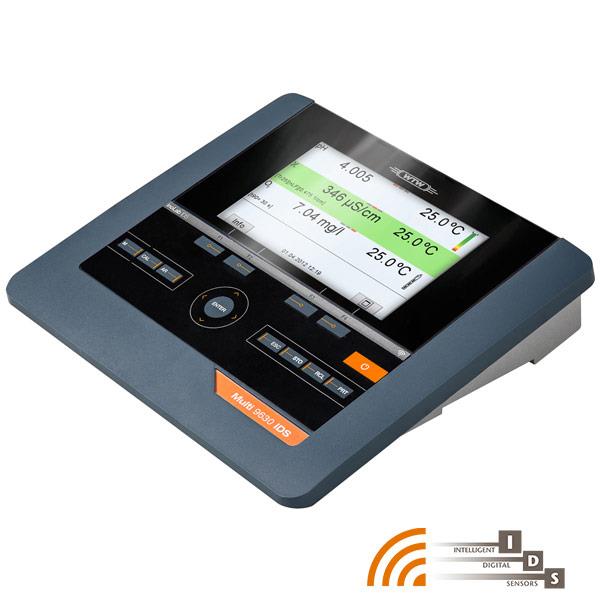

inoLab® Multi 9630 IDS - Digital Multiparameter Lab Benchtop Meter
inoLab® Multi 9630 IDS: Digital high-performance multi-parameter device with three inputs for pH, ISE, conductivity and dissolved oxygen and comprehensive GLP functions
Variants Art.-No. Name Description 1FD570 inoLab® Multi 9630 IDS Single unit with universal power supply, stand, manual, CD-ROM with software, USB cable 1FD57K inoLab® Multi 9630 SET K Single unit with SenTix® 980, TetraCon® 925, FDO® 925, QSC-Kit (EVE required), Buffer 4, 7 and 10.01, 3 mol/l KCl, 0,01 mol/l KCl, universal power supply, stand, manual, CD-ROM with software, USB cable
Highlights:Modern high-performance multi-parameter meter with three galvanically isolated measuring channels pH/mV, ISE (including incremental process), conductivity and oxygen measurement. Up to three of the same or different parameters can be measured. With a large 16:9 color graphic display under a hygienic glass shield and antibacterial keyboard for use, even in critical areas. Use the new wireless modules together with the new IDS plug head sensors, be independent from cables and measure i.e. conveniently under laboratory hoods or laminar flow benches. The massive zinc diecasting lower housing adds safety against interference and ensure a safe, stable stand on the lab bench.
Two USB interfaces to communicate with the computer, printer or USB memory stick allow the transfer of all data. An activatable user administration expands the automatic GLP documentation by additional safety and traceability. Integratable adapter for conventional pH/ORP/ISE electrodes available.
The scope of delivery includes the MultiLab® Importer to capture data via Excel® as well as the MultiLab® User (user administration).Take a look at our field benchtop meter Multi-parameter portable meter MultiLine® Multi 3630 IDS.
- Measures pH, Redox, ISE, dissolved oxygen, conductivity, and turbidity
- Wireless ready
- Digital sensor detection
- Simultaneous measurement with three independent measuring channels
- Fatigue proof reading on brilliant color display
-
Parameter pH, mV, ISE, saturation, concentration, partial pressure, conductivity, spec. resistance, salinity, TDS, temperature Universal measuring channels 3 Measuring range Depends on the IDS sensor used Display LCD color graphic CMC/QSC Yes/Yes Data memory manual 500/10000 automatic Analog pH/ORP/ISE sensors ADA 94 pH/IDS DIN or ADA 94 pH/IDS BNC Logger manual/timer-controlled Interface USB A/Mini USB-B Printer Three preinstalled drivers (description see Operating Instructions) Power supply Universal power supply 100 to 240 V, 50/60 Hz
1FD570 inoLab® Multi 9630 IDS
专业数字多参数台式仪表，无线就绪，用于IDS传感器，用于根据GLP/AQA进行测量/记录。具有pH/mV/ISE、溶解氧、浊度和电导率三个通用输入。仪表包括通用电源、支架和操作手册、软件和USB电缆。
