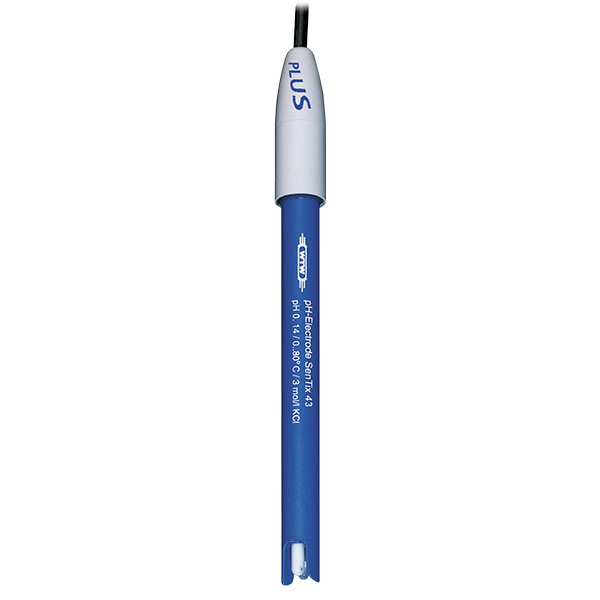

103805 SenTix® 43
Plastic pH electrode with gel electrolyte, integrated Pt 1000 temperature sensor, waterproof DIN plug and banana plug, 1 m cable
带凝胶电解质的塑料pH电极，集成Pt 1000温度传感器，防水DIN插头和香蕉插头，1米电缆
带凝胶电解质的塑料pH电极，集成Pt 1000温度传感器，防水DIN插头和香蕉插头，1米电缆
售价：
¥
0.00
原价：
¥0.00
ꄑ关注：0
-
enTix® 41-47 pH Electrodes
Low-Maintenance - Temperature Sensor - Fiber Diaphragm - Cylindric
SenTix® Variants 43-47 will be available for order in January 2024!
SenTix®41, 41-3, 42, 43, 44, 46, 47: Standard ph electrodes with gel electrolyte and temperature sensor for ph measurement in the lab and field.
Variants Order-No. Name Attributes 103635 SenTix® 41 NTC 30 kOhm, 1 m fixed cable with water-proof DIN and 4 mm banana plug 103636 SenTix® 41-3 NTC 30 kOhm, 3 m fixed cable with water-proof DIN and 4 mm banana plug 103637 SenTix® 42 NTC 30 kOhm, 1 m fixed cable with BNC and 4 mm banana plug 103805 SenTix® 43 Pt1000, 1 m fixed cable with water-proof DIN and 4 mm banana plug 103806 SenTix® 44 Pt1000, 1 m fixed cable with BNC and 4 mm banana plug 103807 SenTix® 46 NTC 30 kOhm, 1 m fixed cable with BNC plug and Cinch plug 103808 SenTix® 47 NTC 10 kOhm, BNC plug and 2,5 mm jack plug, 1 m cable (for Sartorius devices)
Highlights:- Low maintenance gel reference system
- Temperature sensor
- Robust plastic shaft
- Fiber diaphragm
- Cylindric
pH electrodes with gel electrolyte and built-in temperature sensor are ideal for portable measurement but also for routine measurement in the lab. We especially recommend these pH electrodes for all applications, where reliable measured values are needed even under the most adverse conditions. They are available with different plugs and cable lengths.
-
SenTix® 41 41-3 42 43 Order no. 103635 103636 103637 103805 Membrane shape Cylindric Shaft Plastic Diaphragm Fiber Temp. sensor NTC 30kOhm Pt 1000 Reference electrolyte Gel Membrane resistance < 1 GOhm Measuring range 0 … 14 pH Temp. range 0 … 80 °C Shaft length 120 mm Shaft diameter 12 mm Connection 1 m fixed cable with water-proof DIN and 4 mm banana plug 3 m fixed cable with water-proof DIN and 4 mm banana plug 1 m fixed cable with BNC and 4 mm banana plug 1 m fixed cable with water-proof DIN and 4 mm banana plug SenTix® 44 46 47 Order no. 103806 103807 103808 Membrane shape Cylindric Shaft Plastic Diaphragm Fiber Temp. sensor Pt 1000 NTC 30kOhm NTC 10kOhm Reference electrolyte Gel Membrane resistance < 1 GOhm Measuring range 0 … 14 pH Temp. range 0 … 80 °C Shaft length 120 mm Shaft diameter 12 mm Connection 1 m fixed cable with BNC and 4 mm banana plug 1 m fixed cable with BNC plug and Cinch plug BNC plug and 2,5 mm jack plug, 1 m cable (for Sartorius devices)
