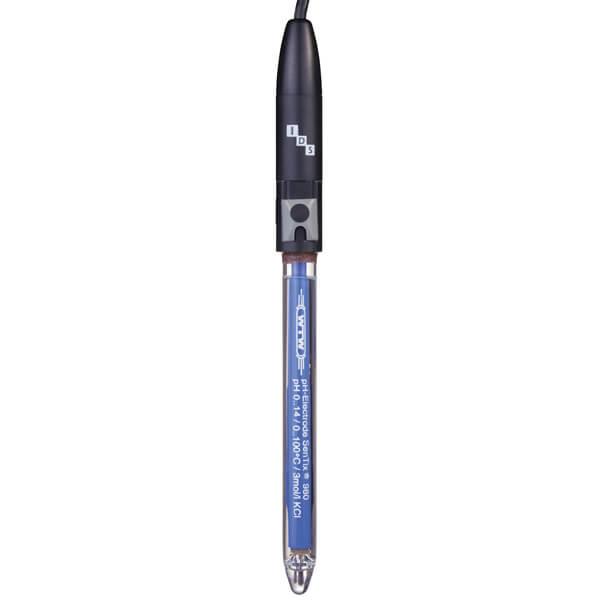

SenTix® 980 IDS pH Electrodes
IDS - Liquid Electrolyte - Platinum Wire Junction - Temperature Sensor - Cone
SenTix® 980, 980-P: Precise electrodes for pH measurement in the lab
Variants Order-No. Name Attributes 103780 SenTix® 980 1,5 m fixed cable with water-proof digital plug 103762 SenTix® 980-P Plug head for AS/IDS-x cable or IDS WLM-S wireless module Highlights:
- Safely measured values due to signal processing in the sensor
- Easy electrode replacement thanks to calibration data stored inside sensor
- Sensor quality monitoring by QSC function
- Temperature sensor
- excellent electrolyte flow without clogging by platinum wire junction
IDS pH combination electrodes with liquid electrolyte, glass shaft, platinum wire junction, integrated temperature sensor and QSC function. For precise lab measurements.
-
SenTix® 980 980-P Order no. 103780 103762 Membrane shape Cone Shaft Glass Diaphragm Platinum wire Temp. sensor NTC 30 kOhm Reference electrolyte KCl 3 mol/l Ag+ free Membrane resistance < 600 MΩ Measuring range 0 … 14 pH Temp. range 0 ... 100 °C Shaft length 120 mm Shaft diameter 12 mm Connection 1,5 m fixed cable with water-proof digital plug Plug head for AS/IDS-x cable or IDS WLM-S wireless module
103762 SenTix® 980-P
IDS pH combination electrode with liquid electrolyte (3 mol/l KCl), glass shaft and integrated temperature sensor. QSC function. Electrode with plug head for AS IDS/1.5 cable or wireless module.
IDS pH组合电极，带液体电解质（3mol/l KCl）、玻璃轴和集成温度传感器。QSC功能。带插头的电极，用于AS IDS/1.5电缆或无线模块。
IDS pH组合电极，带液体电解质（3mol/l KCl）、玻璃轴和集成温度传感器。QSC功能。带插头的电极，用于AS IDS/1.5电缆或无线模块。
