Temperature Sensor - Ground Joint Junction - Cylindric Membrane

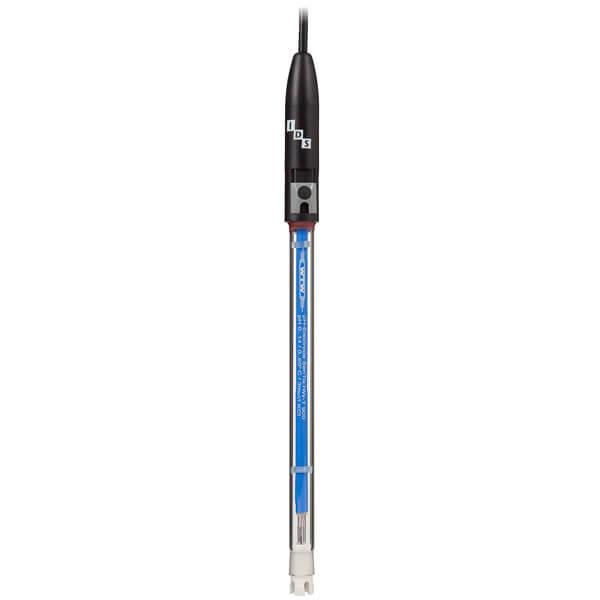

SenTix® HW-T 900, HW-T 900-P: IDS special electrode with ground joint junction and build-in temperature sensor for pH measurement in low conducting samples, emulsions and suspensions.
Variants Art.-No. Name Content 103753 SenTix® HW-T 900 1.5 m fixed cable with water-proof digital plug 103767 SenTix® HW-T 900-P Plug head without cable Highlights:
- Ideal for pH measurement in low conducting samples, emulsions and suspensions
- Temperature sensor
- Ground joint junction
- Cylindric membrane shape
- Safely measured values due to signal processing in the sensor
- Easy electrode replacement thanks to calibration data stored inside sensor
- Sensor quality monitoring by QSC function
IDS precision pH combination electrode with ground joint junction for low-ionic media, length 165 mm with integrated temperature sensor, QSC function, memory for 10 calibrations, serial number.
-
SenTix® HW-T 900 HW-T 900-P Order no. 103753 103767 Membrane shape Cylindric Shaft Glass Diaphragm Ground joint Temp. sensor NTC 30kOhm Reference electrolyte KCl 3 mol/l Ag+ frei Membrane resistance < 600 MOhm Measuring range 0 … 14 pH Temp. range 0 … 60 °C Shaft length 165 mm Shaft diameter 12 mm Connection 1.5 m fixed cable with water-proof digital plug Plug head without cable
103753 SenTix® HW-T 900
IDS precision pH combination electrode with split ring junction for low-ionic media, length 165 mm with integrated temperature sensor, QSC function, memory for 10 calibrations, serial number, 1.5 m cable with waterproof digital connector for MultiLine®, MonoLine or inoLab® IDS.
IDS精密pH组合电极，带开口环接头，适用于低离子介质，长度165毫米，带集成温度传感器，QSC功能，可存储10次校准，序列号，1.5米电缆，带防水数字连接器，适用于MultiLine®、MonoLine或inoLab®IDS。
IDS精密pH组合电极，带开口环接头，适用于低离子介质，长度165毫米，带集成温度传感器，QSC功能，可存储10次校准，序列号，1.5米电缆，带防水数字连接器，适用于MultiLine®、MonoLine或inoLab®IDS。
