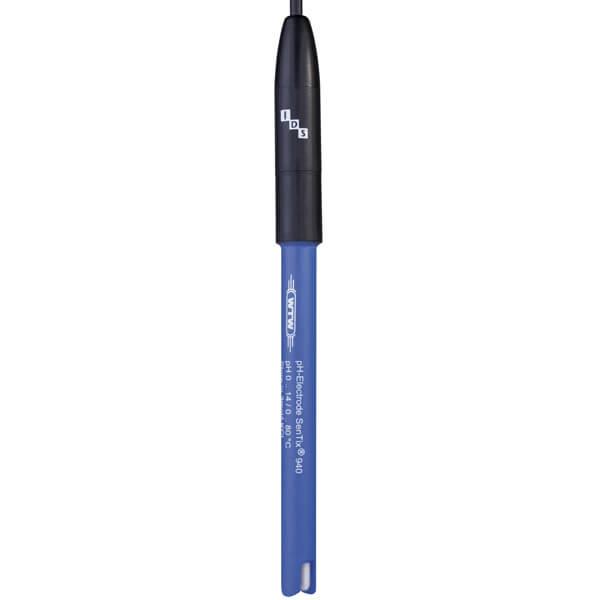

SenTix®940

103741 SenTix® 940 -3

IDS pH combination electrode with gel electrolyte, plastic shaft and integrated temperature sensor. QSC function. Electrode incl. 3 m fixed cable with waterproof digital connector. For MultiLine® MonoLine, and inoLab® IDS.
IDS pH组合电极,带凝胶电解质、塑料轴和集成温度传感器。QSC功能。电极,包括带防水数字连接器的3m固定电缆。适用于MultiLine®MonoLine和inoLab®IDS。
售价:
¥ 0.00
原价: ¥0.00
关注:0

服务:  现货现款・ 48小时快速处理・ 含税运。

收藏
数量:
  • SenTix® 940 IDS pH Electrodes

    IDS - Gel Electrolyte - Fiber Diaphragm - Temperature Sensor - Cylindric

    SenTix® 940, 940-3, 940-P: low-maintenance IDS pH electrodes with gel electrolyte, build-in temperature sensor and fiber diaphragm

    Variants
    Order-No. Name Attributes
    103740 SenTix® 940 1,5 m fixed cable with water-proof digital plug
    103741 SenTix® 940-3 3 m fixed cable with water-proof digital plug
    103760 SenTix® 940-P Plug head for AS/IDS-x cable or IDS WLM-S wireless module

    Highlights:

    • Safely measured values due to signal processing in the sensor
    • Easy electrode replacement thanks to calibration data stored inside sensor
    • Sensor quality monitoring by QSC function
    • Temperature sensor

    Low-maintenance IDS pH combination electrode with gel electrolyte, plastic shaft and integrated temperature sensor, memory for 10 calibartion records, stored serial number, QSC function.

    • SenTix® 940 940-3 940-P
      Order no. 103740 103741 103760
      Membrane shape Cylindric
      Shaft Plastic
      Diaphragm Fiber
      Temp. sensor NTC 30 kOhm
      Reference electrolyte Gel
      Membrane resistance < 1 GΩ
      Measuring range 0 … 14 pH
      Temp. range 0 ... 80 °C
      Shaft length 120 mm
      Shaft diameter 12 mm
      Connection 1,5 m fixed cable with water-proof digital plug 3 m fixed cable with water-proof digital plug Plug head for AS/IDS-x cable or IDS WLM-S wireless module
