SenTix® Mic pH Special Electrode
Liquid Electrolyte - Platinum Wire or Ceramic Diaphragm - Cylindric
SenTix® Mic, Mic-B, Mic-D: pH electrodes for measurement in small vessels
Variants Order-No. Name Attributes 103647 SenTix® Mic Ceramic diaphragm, 0 - 100 °C, 40/80 mm shaft length, 12/5mm shaft diameter, S7 plug head without cable 103660 SenTix® Mic-D Platinum wire diaphragm, -5 - 100 °C, 96 mm shaft length, 3mm shaft diameter, 1 m fixed cable with water-proof DIN 103661 SenTix® Mic-B Platinum wire diaphragm, -5 - 100 °C, 96 mm shaft length, 3mm shaft diameter, 1 m fixed cable with BNC Highlights:
- Membrane diameter 5 mm or 3 mm
- Ceramic or platinum wire junction
- Cylindric shape
-
SenTix® Mic Mic-D Mic-B Order no. 103647 103660 103661 Membrane shape Cylindric Shaft Glass Diaphragm Ceramic Platinum wire Temp. sensor - Reference electrolyte KCl 3 mol/l Ag+ free Measuring range 0 … 14 pH Temp. range 0 … 100 °C -5 … 100° C Shaft length 40/80 mm 96 mm Shaft diameter 12/5 mm 3 mm 3 mm Connection S7 plug head, without cable 1 m fixed cable with water-proof DIN 1 m fixed cable with BNC

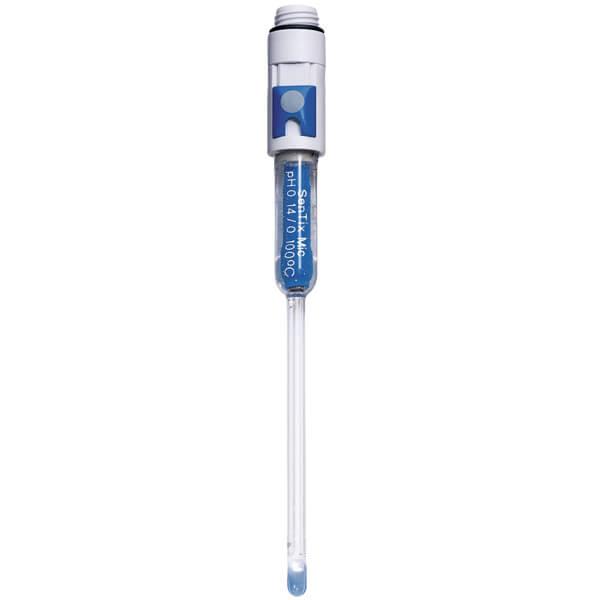

103647 SenTix® Mic
Micro pH combination electrode for measurements in small volumes or in small vessels, S7 plug head, shaft diameter 5 mm, without cable.
用于小体积或小容器测量的微pH组合电极，S7塞头，轴直径5mm，无电缆。
