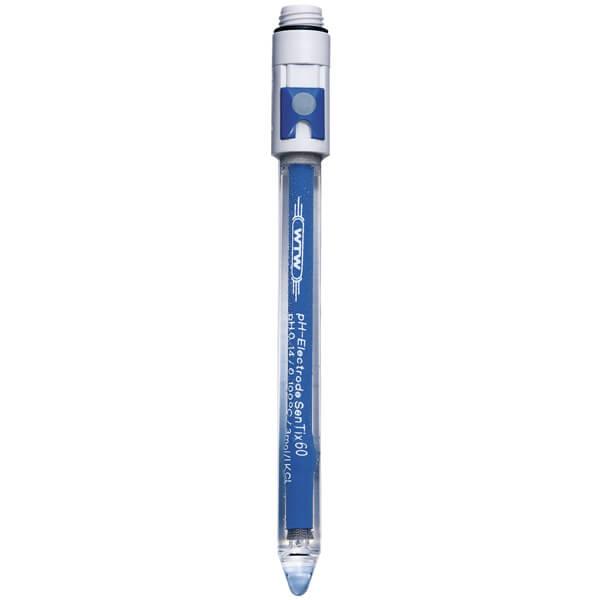

SenTix® 60-62 pH Electrodes
Liquid Electrolyte - Platinum Wire Junction - Cone
SenTix® 60, 61, 62: Precision electrodes with liquid electrolyte for pH measuerments in lab applications
Varianten Order-No. Name Attributes 103639 SenTix® 60 S7 plug head, without cable 103640 SenTix® 61 1 m fixed cable with water-proof DIN 103641 SenTix® 62 1 m fixed cable with BNC Highlights:
- Excellent electrolyte flow without clogging by platinum wire junction
- Fast response with liquid reference system
- Optimum results thanks to high-quality membrane glass
- Cone shape
SenTix® 60-62 electrodes with 3 mol/l KCl electrolyte are designed for demanding measurements in the laboratory. With there easy to clean glass shaft and their platinum wire junction they can be used also in difficult samples. The temperature compensation is set manually or with an external temperature sensor.
-
SenTix® 60 61 62 Order no. 103639 103640 103641 Membrane shape Cone Shaft Glass Diaphragm Platinum wire Temp. sensor - Reference electrolyte KCl 3 mol/l Ag+ free Membrane resistance <600 MΩ Measuring range 0 … 14 pH Temp. range 0 … 100 °C Shaft length 120 mm Shaft diameter 12 mm Connection S7 plug head, without cable 1 m fixed cable with water-proof DIN 1 m fixed cable with BNC
103641 SenTix® 62
Glass pH combination electrode with liquid electrolyte, BNC plug. Length 120 mm, 3.3 ft (1 m) cable.
玻璃pH组合电极，带液体电解质，BNC插头。长度为120毫米，3.3英尺（1米）的电缆。
玻璃pH组合电极，带液体电解质，BNC插头。长度为120毫米，3.3英尺（1米）的电缆。
