SenTix® 20-22 pH Electrodes

Gel Electrolyte - Fiber Diaphragm - Cylindric

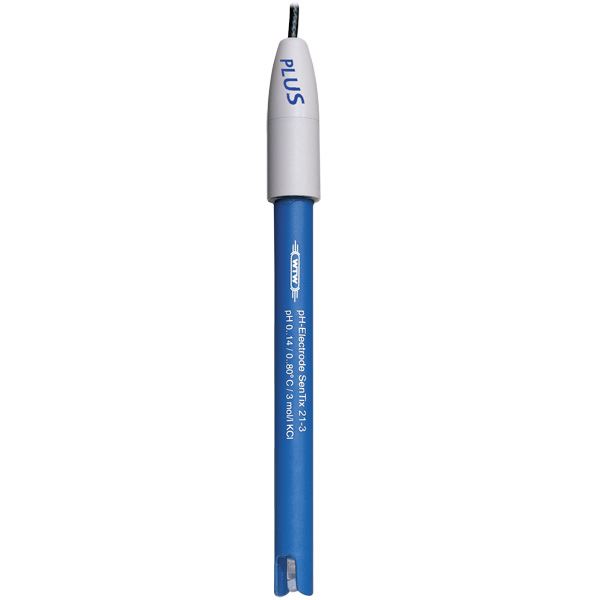

SenTix® 20, 21, 21-3, 22: Standard electrodes with gel electrolyte for pH measurement in the lab and field

Variants
Order-No.	Name	Attributes
103630	SenTix® 20	S7 plug head, without cable
103631	SenTix® 21	1 m fixed cable with water-proof DIN
103632	SenTix® 21-3	3 m fixed cable with water-proof DIN
103633	SenTix® 22	1 m fixed cable with BNC

Highlights:

Low maintenance gel reference system
Cost effective
Robust plastic shaft
Fiber Diaphragm
Cylindric shape

pH electrodes with gel electrolyte are ideal for portable measurement but also for routine measurement in the lab. We especially recommend these pH electrodes for all applications, where reliable measured values are needed even under the most adverse conditions. The temperature compensation is set manually or with an external temperature sensor.

SenTix^®	20	21	21-3	22
Order no.	103630	103631	103632	103633
Membrane shape	Cylindric
Shaft	Plastic
Diaphragm	Fiber
Temp. sensor	-
Reference electrolyte	Gel
Membrane resistance	<1 GΩ
Measuring range	0 … 14 pH
Temp. range	0 … 80 °C
Shaft length	120 mm
Shaft diameter	12 mm
Connection	S7 plug head, without cable	1 m fixed cable with water-proof DIN	3 m fixed cable with water-proof DIN	1 m fixed cable with BNC
