HI5522是一款先进的研究级台式pH/mV/ISE/EC/TDS/盐度/电阻率计，可通过大彩色LCD、电容触摸键和用于计算机连接的USB端口进行完全定制。HI5522具有丰富的功能，包括ISE增量方法、数据记录、报警限值、全面的GLP等，同时保留了常规操作专用键和引导用户完成设置选项的虚拟键的简单使用。HI5522通过独有的Hanna Instruments CAL Check™功能确保pH测量的可信度，该功能可提醒用户校准过程中的潜在问题，包括缓冲液是否被污染或探针是否需要清洁。
电容式触摸键盘
两个独立通道
ISE浓缩装置和增量方法的选择SKU HI5522-02 Product Name Laboratory Research Grade Benchtop pH/mV/ISE and EC/TDS/Salinity/Resistivity Meter - HI5522 Quote Required Yes pH Range -2.0 to 20.0 pH / -2.00 to 20.00 pH / -2.000 to 20.000 pH pH Resolution 0.1 pH / 0.01 pH / 0.001 pH pH Accuracy ±0.1 pH / ±0.01 pH / ±0.002 pH ± 1LSD pH Calibration Up to five-point calibration, eight standard buffers available (pH 1.68, 3.00, 4.01, 6.86, 7.01,9.18, 10.01, 12.45), and five custom buffers pH Temperature Compensation automatic or manual from -20.0 to 120.0 °C mV Range ±2000.0 mV mV Resolution 0.1 mV mV Accuracy ±0.2 mV ± 1LSD mV Relative Offset ±2000.0 mV ISE Range e.g. 10-7 to 10M/ 0.005 to 105 ppm/ 5·10–7 to 5·107 conc ISE Resolution 1 conc./ 0.1 conc. / 0.01 conc. / 0.001 conc ISE Accuracy ±0.5% (monovalent ions); ±1% (divalent ions) ISE Calibration Up to five-point calibration, seven fixed standard solutions available for each measurement unit, and five custom solutions EC Range 0.000 to 9.999 μS/cm, 10.00 to 99.99 μS/cm, 100.0 to 999.9 μS/cm, 1.000 to 9.999 mS/cm, 10.00 to 99.99 mS/cm, 100.0 to 1000.0 mS/cm actual EC* EC Resolution 0.001 μS/cm, 0.01 μS/cm, 0.1 μS/cm, 1 μS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm EC Accuracy ±1% of reading (±0.01 μS/cm) EC Calibration automatic standard recognition (0.000 μS/cm, 84.00 μS/cm, 1.413 mS/cm, 5.000 mS/cm, 12.88 mS/cm, 80.00 mS/cm, 111.8 mS/cm) or user standard; single point or multi-point calibration TDS Range 0.000 to 9.999 ppm, 10.00 to 99.99 ppm, 100.0 to 999.9 ppm, 1.000 to 9.999 ppt, 10.00 to 99.99 ppt, 100.0 to 400.0 ppt actual TDS* (with 1.00 factor) TDS Resolution 0.001 ppm, 0.01 ppm, 0.1 ppm, 1 ppm, 0.001 ppt, 0.01 ppt, 0.1 ppt TDS Accuracy ±1% of reading (±0.01 ppm) EC/TDS Temperature Compensation Disabled / Linear / Non linear (natural water) Temperature Correction Coefficient 0.00 to 10.00 %/°C Reference Temperature 5.0 °C to 30.0 °C Cell Constant 0.0500 to 200.00 Cell Type 4 cells Salinity (% NaCl) Range 0.0 to 400.0% Salinity (% NaCl) Resolution 0.01% Salinity (% NaCl) Accuracy ±1% of reading Salinity (PSU) Range 0.00 to 42.00 psu Salinity (PSU) Resolution 0.01 Salinity (PSU) Accuracy ±1% of reading Salinity (PSU) Calibration one-point (with HI7037 standard) Salinity Range 0.00 to 80.00 ppt Salinity Resolution (ppt) 0.01 Salinity Accuracy (ppt) ±1% of reading Resistivity Range 1.0 to 99.9 Ω•cm; 100 to 999 Ω•cm; 1.00 to 9.99 KΩ•cm; 10.0 to 99.9 KΩ•cm; 100 to 999 KΩ•cm; 1.00 to 9.99 MΩ•cm; 10.0 to 100.0 MΩ•cm Resistivity Resolution 0.1 Ω•cm; 1 Ω•cm; 0.01 KΩ•cm; 0.1 KΩ•cm; 1 KΩ•cm; 0.01 MΩ•cm; 0.1 MΩ•cm* Resistivity Accuracy ±2% of reading (±1 Ω•cm) Temperature Range -20.0 to 120.0 ºC**; -4.0 to 248.0 ºF**; 253.15 to 393.15 K** Temperature Resolution 0.1 °C, 0.1 °F, 0.1 K Temperature Accuracy ±0.2 °C; ±0.4 °F; ±0.2 K (without probe) Input Channels 2 (pH/mV/ISE; Conductivity/Resistivity/TDS/ Salinity) pH Electrode HI1131B glass body pH electrode with BNC connector and 1 m (3.3’) cable (included) EC/TDS Probe HI76312 platinum, four-ring EC/TDS probe with and 1 m (3.3’) cable (included) Temperature Probe HI7662-T stainless steel temperature probe with 1 m (3.3’) cable (included) Logging Type Automatic, Manual, AutoHold Logging Memory Up to 100 lots, 50,000 records max/lot; maximum 100,000 data points / channel Logging Interval 14 selectable between 1 second and 180 minutes Connectivity Opto-isolated USB GLP yes (GLP Channel 1 Calibration Timeout Reminder yes USP Compliant USP <645> Application Profiles Up to 10 (5 for each) Display Color Graphic LCD 240 x 320 pixels, 8 keys capacitive touch keyboard Power Supply 12 VDC adapter (included) Environment 0 to 50°C (32 to 122°F; 273 to 323 K), RH max 95% non-condensing Dimensions 160 x 231 x 94 mm (6.3 x 9.1 x 3.7”) Weight 1.2 Kg (2.6 lbs) Ordering Information HI5522 is supplied with HI1131 pH electrode, HI7662-T temperature probe, HI76312 conductivity probe, HI76404W electrode holder, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI700601 electrode cleaning solution sachet (2), HI7082 3.5M KCl electrolyte solution (30 mL), 12 VDC power adapter and instructions. Notes *Uncompensated conductivity (or TDS) is the conductivity (or TDS) value without temperature compensation.
HI5522-02

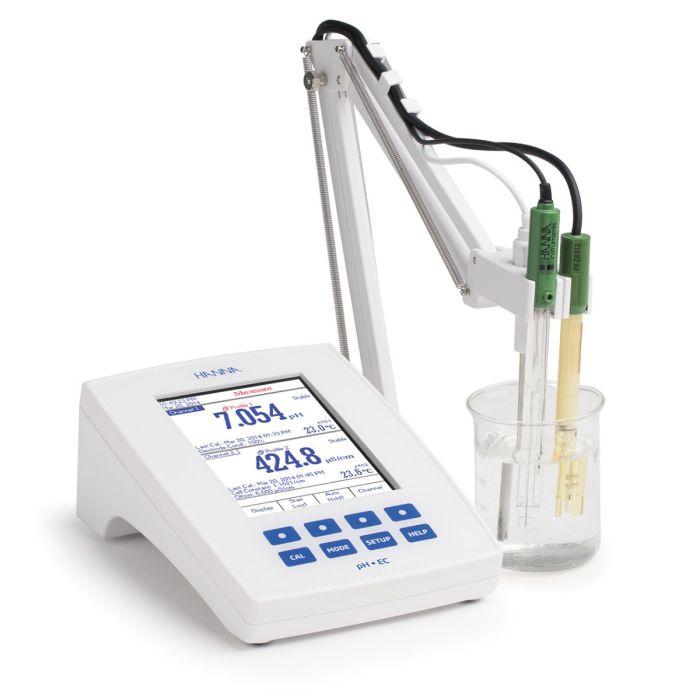

实验室研究级台式pH/mV/ISE和EC/TDS/盐度/电阻率计
