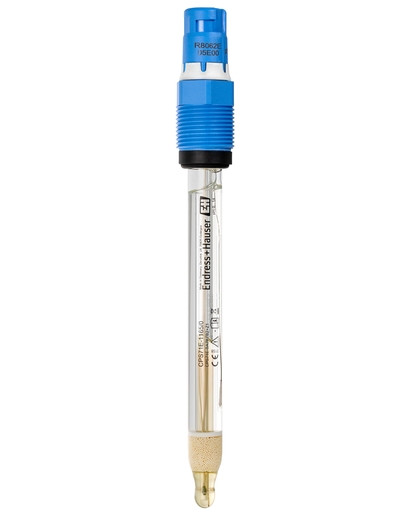

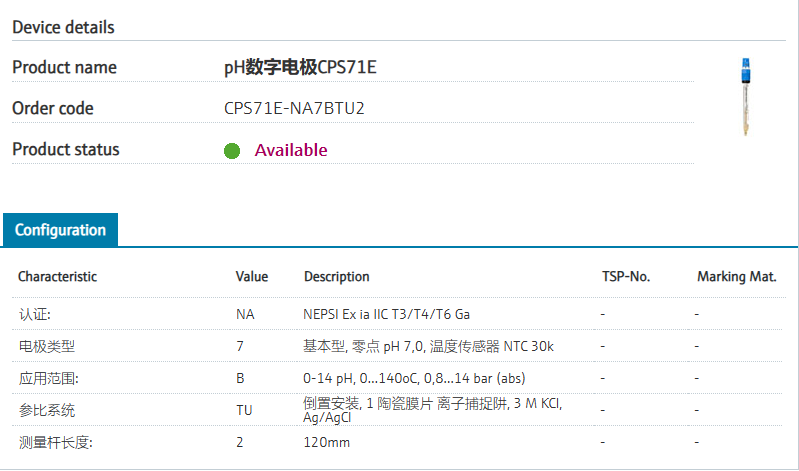

CPS71E-NA7BTU2 订货号 CPS71E-16C0/0 扩展订货号 (CPS71E-NA7BTU2) 名称 pH数字电极CPS71E 基本描述 pH comb. sensor, Memosens 2.0.
Junction: Ceramic.
Signal transmission: Digital.
Reference system: Ag/AgCl, Gel
(non acrylamide).
Options: Pressurized reference,
upside down mounting.
1 or 3 junctions.
Chemical processes.
pH comb. sensor, Memosens 2.0.
Junction: Ceramic.
Signal transmission: Digital.
Reference system: Ag/AgCl, Gel
(non acrylamide).
Options: Pressurized reference,
upside down mounting.
1 or 3 junctions.
Chemical processes.认证: NA NEPSI Ex ia IIC T3/T4/T6 Ga 电极类型 7 基本型, 零点 pH 7,0, 温度传感器 NTC 30k 应用范围: B 0-14 pH, 0...140oC, 0,8...14 bar (abs) 参比系统 TU 倒置安装, 1 陶瓷膜片 离子捕捉阱, 3 M KCl, Ag/AgCl 测量杆长度: 2 120mm

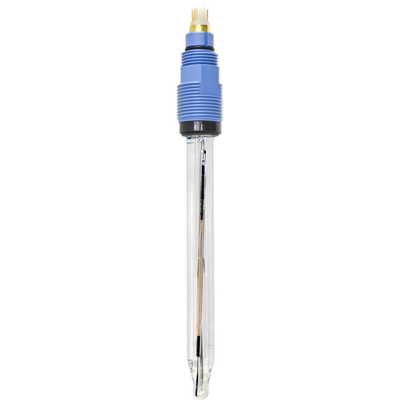

CPS71E-NA7BTU2 | CPS71E-16C0/0
防爆，可倒置安装，量程0-14pH，温度范围0-140℃，压力范围0-14bar。
