PMC71-UBA1PBGHBA2 | PMC71-43V44/0
量程1MPa，本安防爆，G1/2螺纹连接，4-20mA HART输出带显示
售价：
¥
0.00
原价：
¥0.00
ꄑ关注：0
-

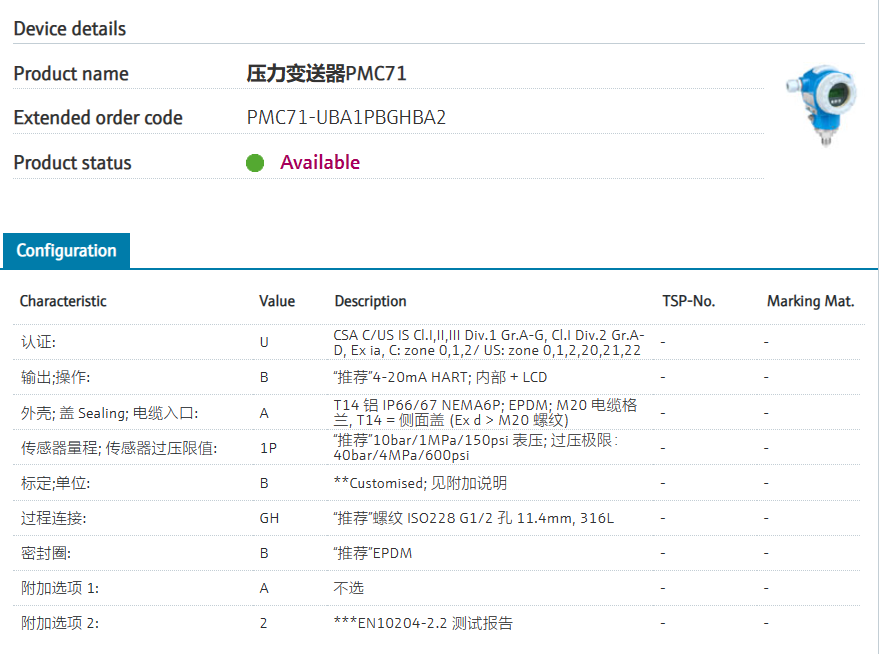

PMC71-UBA1PBGHBA2 订货号 PMC71-43V44/0 扩展订货号 (PMC71-UBA1PBGHBA2) 名称 压力变送器PMC71 基本描述 Measurement: Pressure, capacitive.
Compact.
Application: pressure, level.
Membrane: Ceraphire,
dry, vacuum proof.
:: Mechanically robust,
overload resistant.
:: High reliability through process
monitoring.
:: High long term stability.
:: Modular.认证: U CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, Cl.I Div.2 Gr.A-D, Ex ia, C: zone 0,1,2/ US: zone 0,1,2,20,21,22 输出;操作: B “推荐”4-20mA HART; 内部 + LCD 外壳; 盖 Sealing; 电缆入口: A T14 铝 IP66/67 NEMA6P; EPDM; M20 电缆格兰, T14 = 侧面盖 (Ex d > M20 螺纹) 传感器量程; 传感器过压限值: 1P “推荐”10bar/1MPa/150psi 表压; 过压极限：40bar/4MPa/600psi 标定;单位: B **Customised; 见附加说明 过程连接: GH “推荐”螺纹 ISO228 G1/2 孔 11.4mm, 316L 密封圈: B “推荐”EPDM 附加选项 1: A 不选 附加选项 2: 2 Customer specific 型
