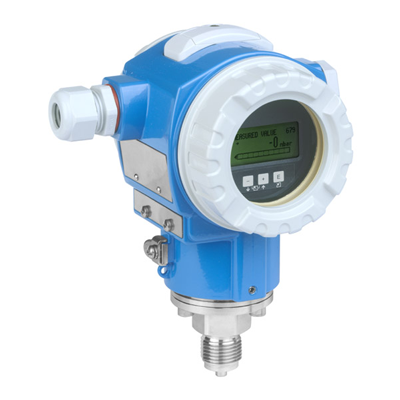

PMC71-5AA1C3GABAA 订货号 PMC71-22X5/0 扩展订货号 (PMC71-5AA1C3GABAA) 名称 压力变送器PMC71 基本描述 Measurement: Pressure, capacitive.
Compact.
Application: pressure, level.
Membrane: Ceraphire,
dry, vacuum proof.
:: Mechanically robust,
overload resistant.
:: High reliability through process
monitoring.
:: High long term stability.

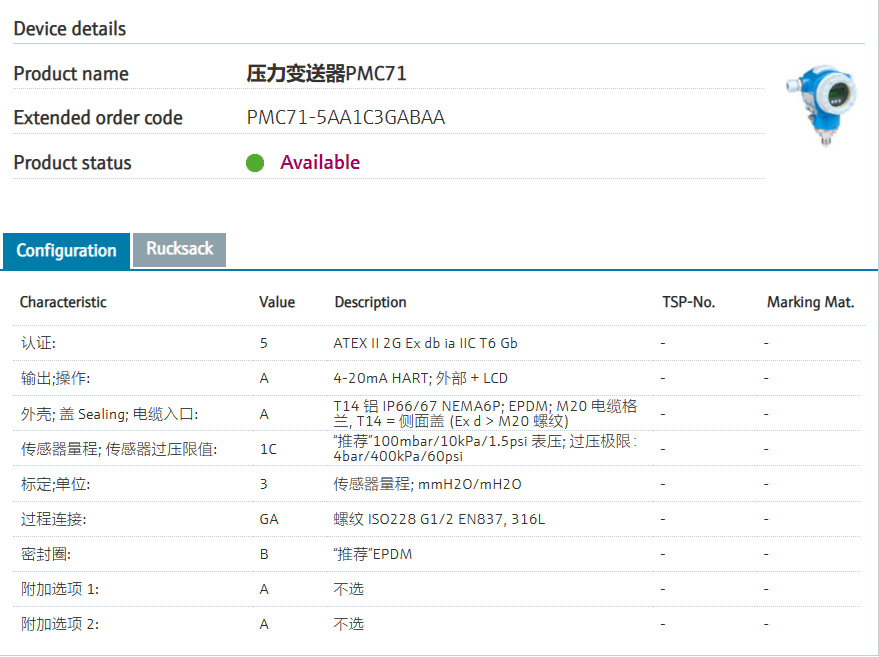

:: Modular.认证: 5 ATEX II 2G Ex db ia IIC T6 Gb 输出;操作: A 4-20mA HART; 外部 + LCD 外壳; 盖 Sealing; 电缆入口: A T14 铝 IP66/67 NEMA6P; EPDM; M20 电缆格兰, T14 = 侧面盖 (Ex d > M20 螺纹) 传感器量程; 传感器过压限值: 1C “推荐”100mbar/10kPa/1.5psi 表压; 过压极限：4bar/400kPa/60psi 标定;单位: 3 传感器量程; mmH2O/mH2O 过程连接: GA 螺纹 ISO228 G1/2 EN837, 316L 密封圈: B “推荐”EPDM 附加选项 1: A 不选 附加选项 2: A 不选
PMC71-5AA1C3GABAA | PMC71-22X5/0
量程10KPa，隔爆，G1/2螺纹连接，4-20mA HART输出
