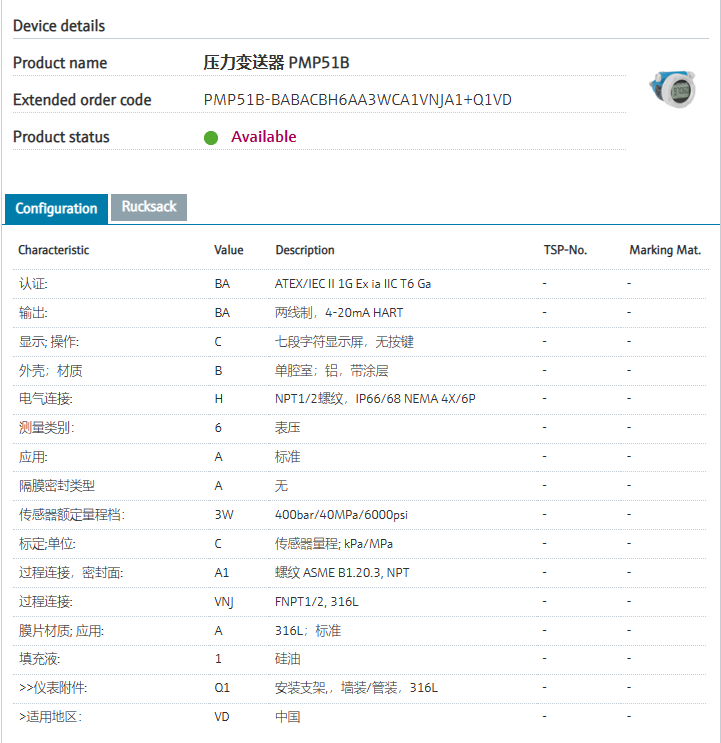

PMP51B-BABACBH6AA3WCA1VNJA1+Q1VD 订货号 PMP51B-J0H3/0 扩展订货号 (PMP51B-BABACBH6AA3WCA1VNJA1+Q1VD) 名称 压力变送器 PMP51B 基本描述 Pressure, piezoresistive.
Pressure transmitter.
Compact/diaphragm seal.
Application: pressure/level.
Metal membrane: fully welded,
high process pressure
and temperature.
:: Modular.
:: Easy local or remote operation
via Bluetooth (optional).认证: BA ATEX/IEC II 1G Ex ia IIC T6 Ga 输出: BA “推荐”两线制，4-20mA HART 显示; 操作: C 七段字符显示屏，无按键 外壳；材质 B “推荐”单腔室；铝，带涂层 电气连接: H “推荐”NPT1/2螺纹，IP66/68 NEMA 4X/6P 测量类别： 6 “推荐”表压 应用: A “推荐”标准 隔膜密封类型 A “推荐”无 传感器额定量程档： 3W 400bar/40MPa/6000psi 标定;单位: C “推荐”传感器量程; kPa/MPa 过程连接，密封面: A1 “推荐”螺纹 ASME B1.20.3, NPT 过程连接: VNJ “推荐”FNPT1/2, 316L 膜片材质; 应用: A “推荐”316L；标准 填充液: 1 “推荐”硅油 >适用地区： VD 中国
PMP51B-BABACBH6AA3WCA1VNJA1+Q1VD | PMP51B-J0H3/0
量程40MPa，防爆，两线制，4-20mA HART 输出，带显示
