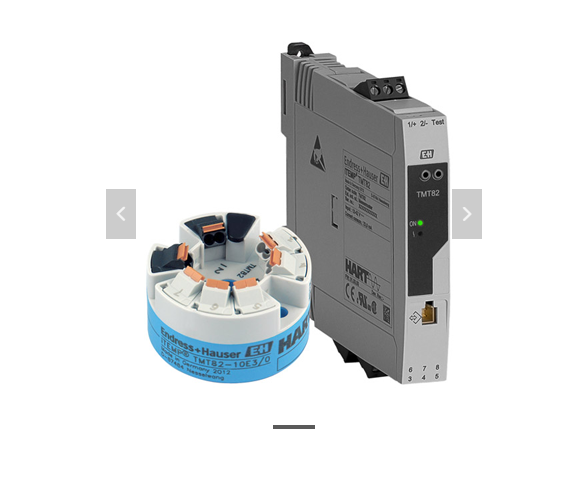

TMT82-NAA2IB1A1AAA1+E1 订货号 TMT82-X8V3/187 扩展订货号 (TMT82-NAA2IB1A1AAA1+E1) 名称 模块温度变送器 TMT82 基本描述 2-wire temperature transmitter.
Dual universal sensor input.
Galvanic isolation 2kV (input/output).
Application: RTD, TC, Ohm and mV.
Presetting failure current high.
::Highly reliable due to drift
detection and sensor back up.
::Optional also for safety critical
applications by means of SIL 2/3

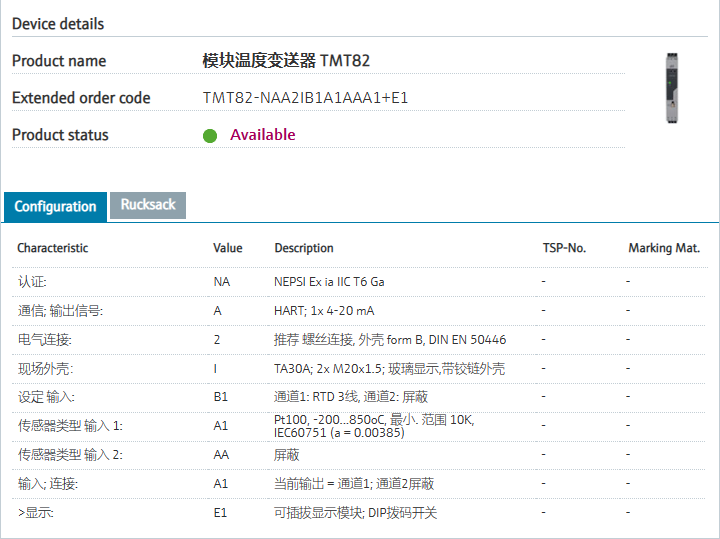

acc. to IEC61508.认证: NA NEPSI Ex ia IIC T6 Ga 通信; 输出信号: A HART; 1x 4-20 mA 电气连接: 2 推荐 螺丝连接, 外壳 form B, DIN EN 50446 现场外壳： I TA30A; 2x M20x1.5; 玻璃显示,带铰链外壳 设定 输入: B1 通道1: RTD 3线, 通道2: 屏蔽 传感器类型 输入 1: A1 Pt100, -200...850oC, 最小. 范围 10K, IEC60751 (a = 0.00385) 传感器类型 输入 2: AA 屏蔽 输入; 连接: A1 当前输出 = 通道1; 通道2屏蔽 >>其他认证: E1 可插拔显示模块; DIP拨码开关
TMT82-NAA2IB1A1AAA1+E1 | TMT82-X8V3/187
温度变送器，本安防爆，带HART协议，带显示带外壳
