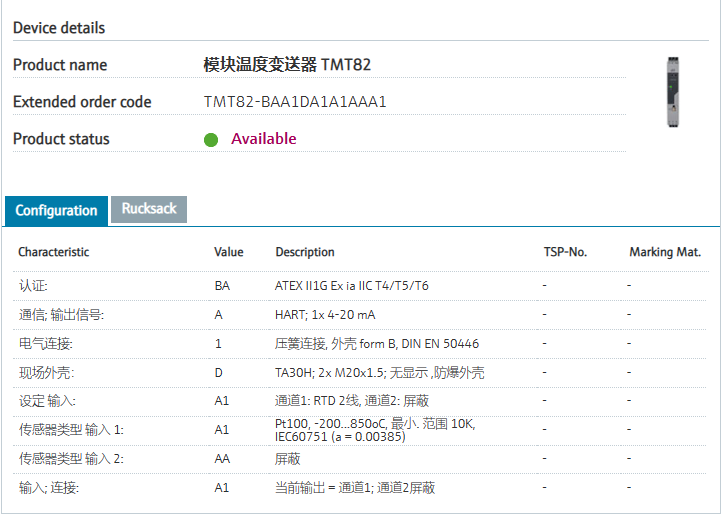

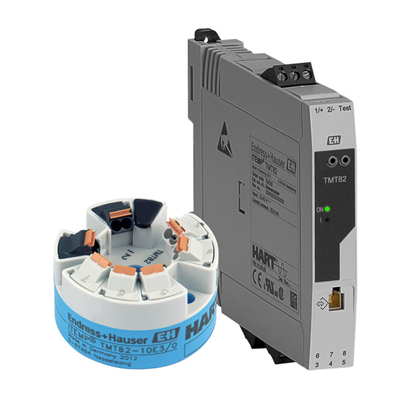

TMT82-BAA1DA1A1AAA1 订货号 TMT82-4AH2/1F0 扩展订货号 (TMT82-BAA1DA1A1AAA1) 名称 模块温度变送器 TMT82 基本描述 2-wire temperature transmitter.
Dual universal sensor input.
Galvanic isolation 2kV (input/output).
Application: RTD, TC, Ohm and mV.
Presetting failure current high.
::Highly reliable due to drift
detection and sensor back up.
::Optional also for safety critical
applications by means of SIL 2/3
acc. to IEC61508.认证: BA ATEX II1G Ex ia IIC T4/T5/T6 通信; 输出信号: A HART; 1x 4-20 mA 电气连接: 1 压簧连接, 外壳 form B, DIN EN 50446 现场外壳： D TA30H; 2x M20x1.5; 无显示 ,防爆外壳 设定 输入: A1 通道1: RTD 2线, 通道2: 屏蔽 传感器类型 输入 1: A1 Pt100, -200...850oC, 最小. 范围 10K, IEC60751 (a = 0.00385) 传感器类型 输入 2: AA 屏蔽 输入; 连接: A1 当前输出 = 通道1; 通道2屏蔽
TMT82-BAA1DA1A1AAA1 | TMT82-4AH2/1F0
温度变送器模块，带HART协议，本安防爆，双通道
