TM131-AABBPAD2BX1AGBC3AA1AA1+LJNQ | TM131-M783/0
哈氏合金护套防腐,4-20ma HART输出,140mm杆长
售价:
¥
0.00
原价:
¥0.00
ꄑ0
-

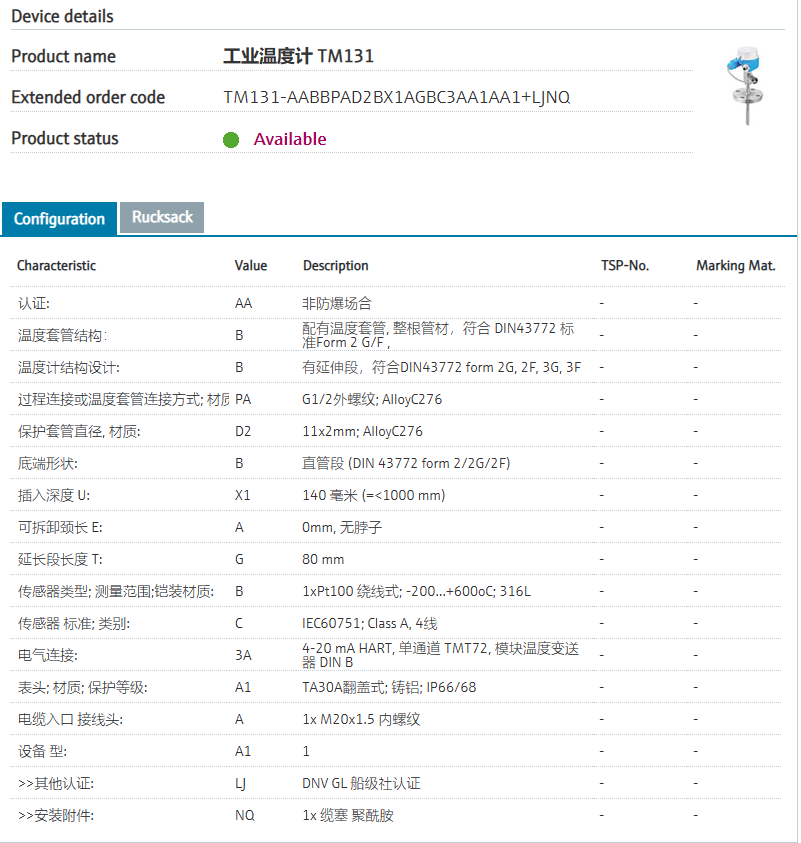

TM131-AABBPAD2BX1AGBC3AA1AA1+LJNQ 订货号 TM131-M783/0 扩展订货号 (TM131-AABBPAD2BX1AGBC3AA1AA1+LJNQ) 名称 工业温度计 TM131 基本描述 Modular thermometer with resistance
sensor or thermocouple.
Metrical version with exchangeable
insert for demanding applications in the
chemical, oil/gas and power industry.
With thermowell or to be installed
into thermowell.
Measuring range: -200...+1.100oC/
-328...2.012oF
(depending on the configuration).
::Fastest response times for optimal
process control through iTHERM QuickSens
insert and fast response thermowell
options.
::Maximum robustness for highest process
safety through iTHERM StrongSens insert.
::Cost savings with recalibrations
through iTHERM QuickNeck coupling
::Material selection for a wide range
of applications.认证: AA 非防爆场合 温度套管结构: B 配有温度套管, 整根管材,符合 DIN43772 标准Form 2 G/F , 温度计结构设计: B 有延伸段,符合DIN43772 form 2G, 2F, 3G, 3F 过程连接或温度套管连接方式; 材质: PA G1/2外螺纹; AlloyC276 保护套管直径, 材质: D2 11x2mm; AlloyC276 底端形状: B 直管段 (DIN 43772 form 2/2G/2F) 插入深度 U: X1 ..... mm (=<1000 mm) 可拆卸颈长 E: A 0mm, 无脖子 延长段长度 T: G 80 mm 传感器类型; 测量范围;铠装材质: B 1xPt100 绕线式; -200...+600oC; 316L 传感器 标准; 类别: C IEC60751; Class A, 4线 电气连接: 3A 4-20 mA HART, 单通道 TMT72, 模块温度变送器 DIN B 表头; 材质; 保护等级: A1 TA30A翻盖式; 铸铝; IP66/68 电缆入口 接线头: A 1x M20x1.5 内螺纹 设备 型: A1 1 >>其他认证: LJ DNV GL 船级社认证 >>安装附件: NQ 1x 缆塞 聚酰胺
