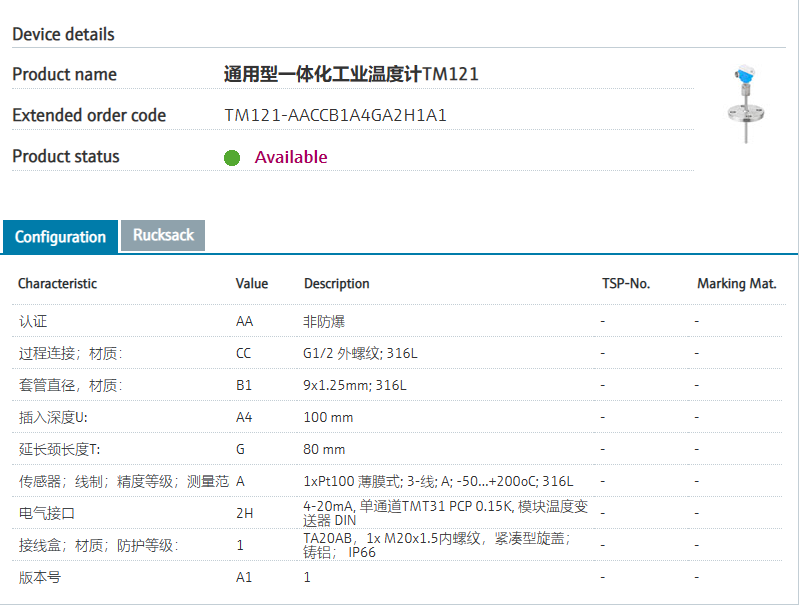

TM121-AACCB1A4GA2H1A1 订货号 TM121-9J62/160 扩展订货号 (TM121-AACCB1A4GA2H1A1) 名称 通用型一体化工业温度计TM121 基本描述 Modular thermometer with resistance
sensor or thermocouple.
Metrical version with exchangeable
insert for low demanding applications
in a high variety of industries.
Thermometer with thermowell.
Measuring range: -50...+650oC/
-328...1.202oF
(depending on the configuration).
::Easy selection and use over the
complete life cycle.
::Basic technology without compromise
in quality.
::Material in contact with the process:
316L.认证 AA 非防爆 过程连接；材质： CC G1/2 外螺纹; 316L 套管直径，材质： B1 9x1.25mm; 316L 插入深度U: A4 100 mm 延长颈长度T: G 80 mm 传感器；线制；精度等级；测量范围；材质： A 1xPt100 薄膜式; 3-线; A; -50...+200oC; 316L 电气接口 2H 4-20mA, 单通道TMT31 PCP 0.15K, 模块温度变送器 DIN 接线盒；材质；防护等级： 1 TA20AB，1x M20x1.5内螺纹，紧凑型旋盖；铸铝； IP66 版本号 A1 1
TM121-AACCB1A4GA2H1A1 | TM121-9J62/101
热电阻温度计，非防爆，螺纹G1./2连接，插入深度100mm，量程范围：-50...+200℃
