PMP51-AA21JA1SGBGMJA1+AK | PMP51-UV82/0
量程4Mpa, 螺纹G1/2链接,带HART和显示。
售价:
¥
0.00
原价:
¥0.00
ꄑ0
-

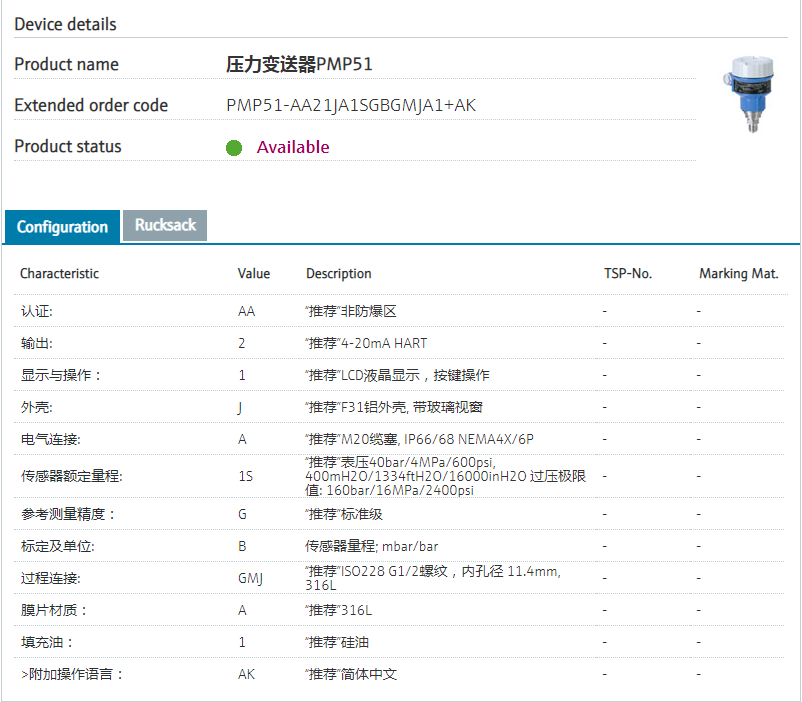

PMP51-AA21JA1SGBGMJA1+AK 订货号 PMP51-UV82/0 扩展订货号 (PMP51-AA21JA1SGBGMJA1+AK) 名称 压力变送器PMP51 基本描述 Measurement: Pressure, piezoresistive.
compact.
Application: pressure, level.
Membrane: Metal, welded.
:: Easiest on-site operation.
:: Modular.认证: AA “推荐”非防爆区 输出: 2 “推荐”4-20mA HART 显示与操作: 1 “推荐”LCD液晶显示,按键操作 外壳: J “推荐”F31铝外壳, 带玻璃视窗 电气连接: A “推荐”M20缆塞, IP66/68 NEMA4X/6P 传感器额定量程: 1S “推荐”表压40bar/4MPa/600psi, 400mH2O/1334ftH2O/16000inH2O 过压极限值: 160bar/16MPa/ 参考测量精度: G “推荐”标准级 标定及单位: B 传感器量程; mbar/bar 过程连接: GMJ “推荐”ISO228 G1/2螺纹,内孔径 11.4mm, 316L 膜片材质: A 推荐”316L 填充油: 1 “推荐”硅油 >附加操作语言: AK “推荐”简体中文
