技术参数
加入对比液体
| 测量原理 | 电磁 |
| Product headline | 流量计用于基本卫生型应用带简便至用途操作方案. 用于应用带卫生型要求. |
| 传感器 features | 柔性安装方案 – 众多卫生型过程连接. 能源节省流量测量 – 否压力 loss due 至 cross 段 constriction. 维护无 – 否 moving 部件. Liner 制造的 PFA. 传感器外壳制造的不锈钢钢 (3-, EHEDG). 接液材质 CIP-/SIP-cleanable. |
| 变送器 features | Optimum usability – 显示带触摸 screen (HART 和 Modbus RS485 通信仅) 或操作带 mobile 设备和 SmartBlue 应用. Simple, 时间节省调试 – guided parameterization 内 advance 和内现场. 集成验证 – Heartbeat 技术. 系统一体化带 HART, Modbus RS485, IO-Link. 柔性操作带应用和可选显示. |
| 公称直径量程 | DN 2 至 150 (¹⁄₁₂ 至 6") |
| 接液材质 | Liner: PFA 电极: 1.4435 (316L); 合金 C22 过程连接: 不锈钢钢, 1.4404 (F316L); PVDF; PVC adhesive 套筒密封件: 无菌 molded 密封 (EPDM, FKM, 硅胶) |
| 被测 variables | 体积流量, 温度, 电导率, 质量流量, 校正体积流量, 校正电导率 |
| 最大. 测量 error | 体积流量 (标准): ±0.5 % o.r. ± 1 mm/s (0.04 内/s) 体积流量 (选项): ±0.2 % o.r. ± 2 mm/s (0.08 内/s) |
| 测量范围 | 0.06 dm³/最小至 600 m³/h (0.015 至 2650 gal/最小) |
| 最大. 过程压力 | PN 40, 等级 150, 20K |
| 介质温度量程 | –20 至 +150 °C (–4 至 +302 °F) |
| 环境温度量程 | –40 至 +60 °C (–40 至 +140 °F) |
| 传感器外壳材料 | 1.4301 (304), 腐蚀耐 |
| 变送器外壳材料 | AlSi10Mg, 涂层 |
| 防护等级 | 标准: IP66/67, 类型 4X 外壳 |
| 显示/操作 | 2.4" LCD 显示带触摸 & auto rotate; 配置和操作通过 Bluetooth 技术可选 |
| 输出 | 4-20 mA HART (有源/无源), 脉冲/频率/开关输出 Modbus RS485, 4-20 mA |
| 数字通信 | HART, MODBUS RS485, IO-Link |
| 电源 | DC 24 V AC 100 至 230 V AC 100 至 230 V / DC 24 V (非危险区域) |
| 危险区域认证 | CSA, GP, KC |
| Metrological 认证和证书 | 校准执行在认可校准设施 (符合 ISO/IEC 17025) Heartbeat 技术符合带要求用于测量可追溯性按照至 ISO 9001:2015 – 段 7.1.5.2 (TÜV SÜD 证明) |
| 压力认证和证书 | PED, CRN |
| 材料证书 | 3.1 材料 |
| 卫生型认证和证书 | 卫生型认证: EHEDG, 3-, liner 和密封件符合 FDA, cGMP |

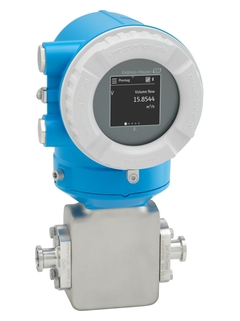

Promag H传感器是食品与饮料、生命科学行业中卫生应用场合的理想选择。Promag H10的软硬件设计均直观明了，在保证Endress+Hauser高品质的前提下， 大大简化了仪表从设计到服务全生命周期内的每一步操作。Heartbeat Technology心跳技术保证测量的可靠性，延长仪表校准周期。
优势
应用领域
设备特点
附件 / 备件 51
共 51 项备件 · 点击展开
| 订货号 | 名称 / 说明 | |
|---|---|---|
| XPD0060- | 传感器电子模块Usage: Promag 10. Consists of: ISEM (sensor electronic module) V316-00. | 询价 |
| XPD0061- | 传感器电子模块Usage: Promag 10. Consists of: ISEM (sensor electronic module) V316-00. | 询价 |
| XPD0062- | 传感器电子模块Usage: Promag 10. Consists of: ISEM (sensor electronic module) V313-00. | 询价 |
| XPD0063- | 传感器电子模块Usage: Promag 10. Consists of: ISEM (sensor electronic module) V313-00. | 询价 |
| XPD0098- | ISEM, standard, IO-Link, Promag 10, nExUsage: Promag 10. Consists of: ISEM (sensor electronic module) V316-00. | 询价 |
| XPD0099- | ISEM, enhanced, IO-Link, Promag 10, nExUsage: Promag 10. Consists of: ISEM (sensor electronic module) V313-00. | 询价 |
| XPD0076- | 电子插件 HART, 24VDC, nEx, 聚碳酸酯, 10Electronic module E400. Usage: Promag 10, Promass 10. Consists of: Module cartridge, power supply module, I/O module | 询价 |
| XPD0077- | 电子插件Electronic module E402. Usage: Promag 10, Promass 10. Consists of: Module cartridge, power supply module, I/O module | 询价 |
| XPD0078- | 电源模块 Modbus, 24VDC, nEx, Polycarb., 10Electronic module E406. Usage: Promag 10, Promass 10. Consists of: Module cartridge, power supply module, I/O module | 询价 |
| XPD0079- | Modbus电子模块, 100-230VAC, nEx, 聚碳酸酯, 10Electronic module E409. Usage: Promag 10, Promass 10. Consists of: Module cartridge, power supply module, I/O module | 询价 |
| XPD0080- | HART电子模块, 24VDC, nEx, Alu, 10Electronic module E401. Usage: Promag 10, Promass 10. Consists of: Module cartridge, power supply module, I/O module | 询价 |
| XPD0081- | 电源模块，输出模块Electronic module E403. Usage: Promag 10, Promass 10. Consists of: Module cartridge, power supply module, I/O module | 询价 |
| XPD0082- | 电源模块，输出模块Electronic module E408. Usage: Promag 10, Promass 10. Consists of: Module cartridge, power supply module, I/O module | 询价 |
| XPD0084- | 电源模块，输出模块Electronic module E411. Usage: Promag 10, Promass 10. Consists of: Module cartridge, power supply module, I/O module | 询价 |
| XPD0096- | IO-Link, nEx, polycarbonate, 10Electronic module E415. Usage: Promag 10, Promass 10. Consists of: Module cartridge, main electronic mod., connection board. | 询价 |
| XPD0097- | IO-Link, nEx, alu, 10Electronic module E416. Usage: Promag 10, Promass 10. Consists of: Module cartridge, main electronic mod., connection board. | 询价 |
| XPD0087- | 显示模块Usage: Promag 10, Promass 10. Consists of: Display module A400. | 询价 |
| XPD0088- | 显示模块Usage: Promag 10, Promass 10. Consists of: Display module A401. | 询价 |
| XPD0089- | 显示模块Usage: Promag 10, Promass 10. Consists of: Display module A401. | 询价 |
| 71505739 | 存储器Electronic storage module unprogrammed Usage: Promag 10. Consists of: S+T-DAT. | 询价 |
| 71505743 | 带状电缆Usage: Promag/Promass 10, transmitter housing. | 询价 |
| 71631284 | ISEM 电缆套件, Promag 10,Non-haz/Exd/Z2Usage: Promag 10, transmitter housing. Consists of: ribbon cable with clip. | 询价 |
| 71505745 | 连接板组件Consists of: Connection terminal 2-Pol., Connection terminal 6-Pol. | 询价 |
| 71323266 | 连接板组件Usage: Sensor connection housing. Consists of: connection board, cover to connection board. | 询价 |
| 71505746 | 盲盖组件 10 非防爆Usage: Promag/Promass 10, transmitter housing polycarbonate. Consists of: cover blind polycarbonate, X-Ring 108,50x3,60 HNBR. | 询价 |
| 71505747 | 盖组件Usage: Promag/Promass 10, transmitter housing polycarbonate. Consists of: cover sight glass polycarbonate, X-Ring 108,50x3,60 HNBR. | 询价 |
| 71505751 | Kit cover gasket,glass/blind,Polycarb,10Usage: Promag/Promass 10, transmitter housing polycarbonate. Consists of: 10x X-Ring 108,50x3,60 HNBR. | 询价 |
| 71505748 | 表盖组件Usage: Promag/Promass 10, transmitter housing Alu. Consists of: cover blind Alu, O-Ring 110,70x3,53 HNBR. | 询价 |
| 71505749 | 表盖组件Usage: Promag/Promass 10, transmitter housing Alu. Consists of: cover sight glass Alu, O-Ring 110,70x3,53 HNBR. | 询价 |
| 71671196 | Kitcover, Alu,PC-inspec. window,Non-hazUsage: Promag/Promass 10, transmitter housing Alu. Consists of: cover Alu, polycarbonate inspection window, O-Ring 110,70x3,53 HNBR. | 询价 |
| 71505752 | 表盖密封圈Usage: Promag/Promass 10, transmitter housing Alu. Consists of: 10x O-Ring 110,70x3,53 HNBR. | 询价 |
| 71323038 | 表盖组件Usage: Promag 10, Promag/Promass/Prosonic Flow 500, wall mount transmitter Alu, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 HNBR. | 询价 |
| 71323042 | 表盖密封圈Usage: Promag 10, Promag/Promass/Prosonic Flow 500, wall mount transmitter Alu/cast, connection compartment. Consists of: 10x O-Ring 88,50x3,53 HNBR. | 询价 |
| 71323068 | 外壳密封圈组件Usage: Promag H 10/500, sensor connection housing. Consists of: gasket 121,5x 61,5 for cover, O-Ring 29,87x1,78 HNBR for sensor plug. | 询价 |
| 71505753 | 外壳密封圈组件Usage: Promag 10, transmitter housing/sensor or transmitter housing/wall mount. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface, 5x O-Ring 29,87x1,78 HNBR for for sensor plug. | 询价 |
| 71505754 | Kit interface gaskets, Polyc., Promag 10Usage: Promag 10, transmitter housing/sensor or transmitter housing/wall mount. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface, 5x O-Ring 29,87x1,78 HNBR for for sensor plug. | 询价 |
| 71614012 | Kit plug M20x1,5/M12x1, IO-Link, HNBRUsage: Promag/Promass 10 | 询价 |
| 71502730 | 遮阳罩盖Usage: Promag 10, 5DBB**,5HBB**,5PBB**,5WBB**, Promass 10, 8KBB** | 询价 |
| 71346428 | 管道安装组件 | 询价 |
| 5XBBXX- | 变送器 Promag 10, 5XBBXXFor use in non-hazardous area, zone 2 and zone 1/21 This transmitter Ex d corresponds to repair category 1, 2, 3. | 询价 |
| DKZ007- | 纽扣电池Coin cell for real time (RTC) For Product: 5*BB, 8*BB, 6*BB, 5*1D, 8*1D | 询价 |
| DK5019- | 传感器电缆组件, PromagConnection Cable between Sensor Junction Housing and Transmitter for Remote Devices of Proline Promag. | 询价 |
| DKH- | Promag H安装组件 DKHA set includes 2 process connections and 2 seals. | 询价 |
| DK5G- | 密封圈组件 | 询价 |
| DK5HB- | 电磁流量计 H, 定距片The set includes 2 distance discs incl. screws and 2 seals. For dimensions refer to the technical documentation. | 询价 |
| DK5HM- | 墙装式安装组件 DK5HM | 询价 |
| DK5HW- | 焊接组件 DK5HW | 询价 |
| DK5HA- | 适配器组件 DK5HAReplacement of sensor Promag A or Promag H DN 25. The set includes 2 adapters and 2 seals. For dimensions refer to the technical documentation. | 询价 |
| DK5HR- | 接地环 DK5HRThe grounding ring set includes 2 grounding rings. This set doesn’t include seals. Seals need to be ordered separately through DK5G* order structure. | 询价 |
| XPRFID- | Spare RFID TAGConsists of: RFID TAG, fixing wire, crimp sleeve. | 询价 |
| XPSPEC- | 位号备件Attention: Only 1 piece per position orderable in offer/order because of item category group ZTA1. Consists of: TAG, fixing wire, crimp sleeve. | 询价 |
