Proline t-mass A 150 E H vortex flowmeter

Home ꄲ Technical ꄲ Installation and commissioning ꄲ Proline t-mass A 150 E H vortex flowmeter

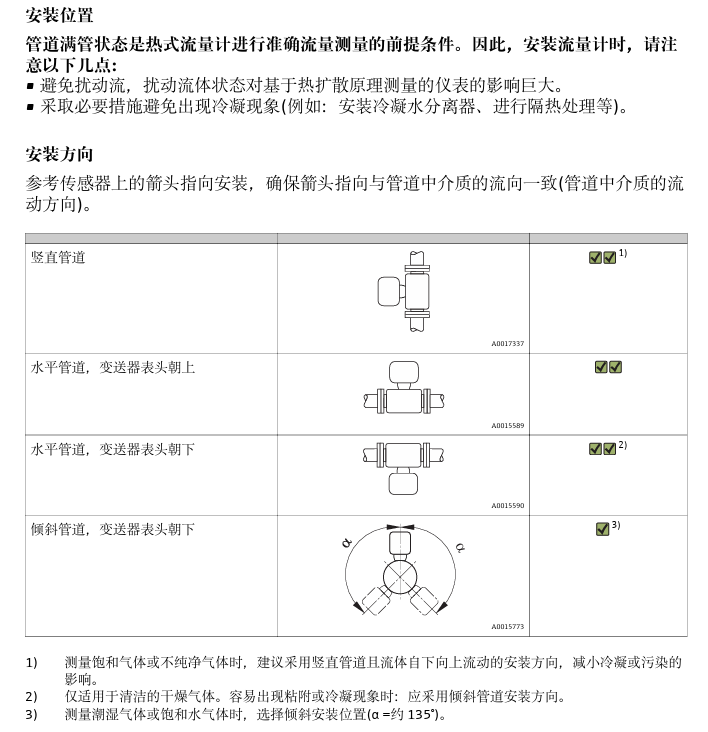

1. Installation position

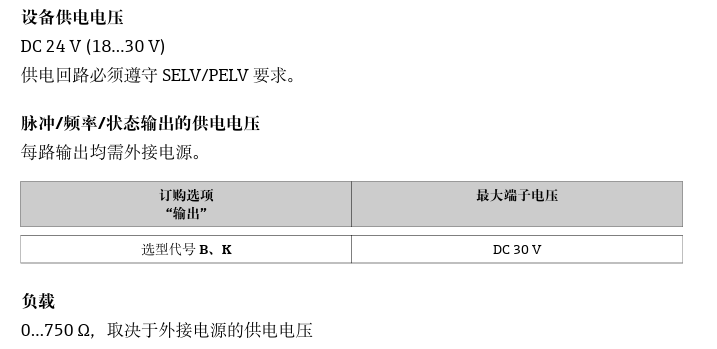

2. Power requirements: mainly see the voltage marked on the nameplate.

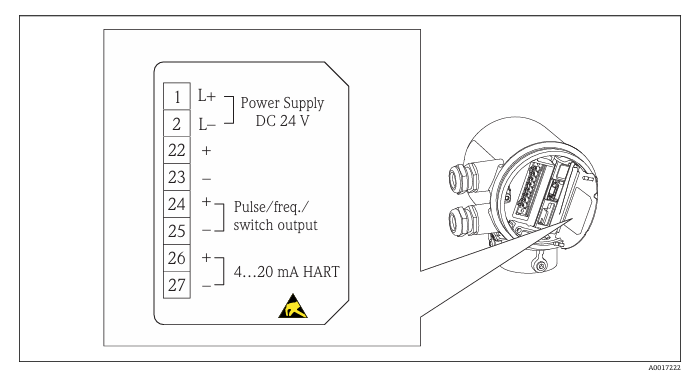

2.1 terminal assignment

terminal is located on the nameplate of the electronic module.

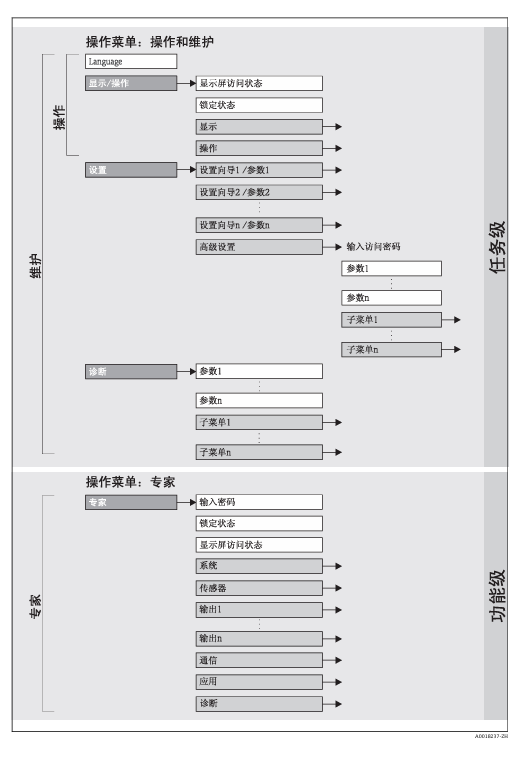

3. Operation menu

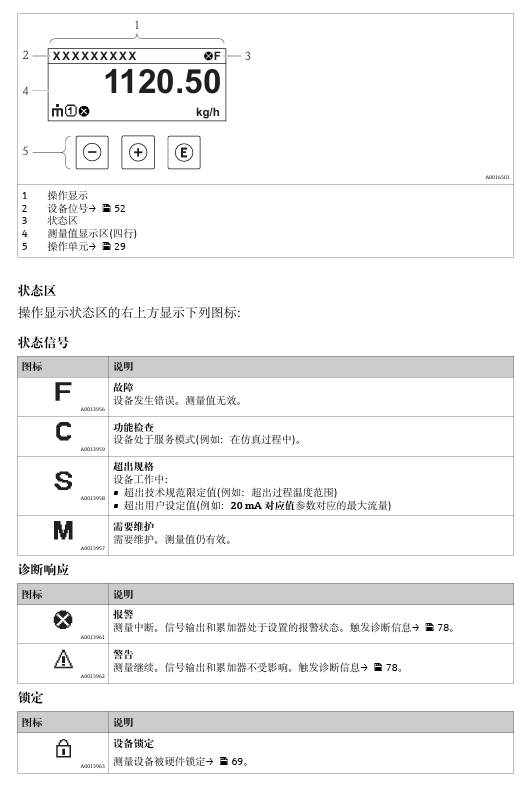

3.1 operation display

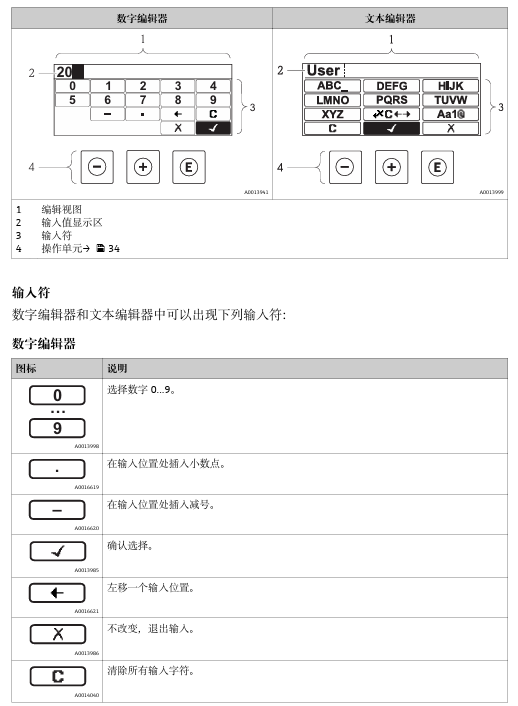

3.2 editing diagram

4. Debugging

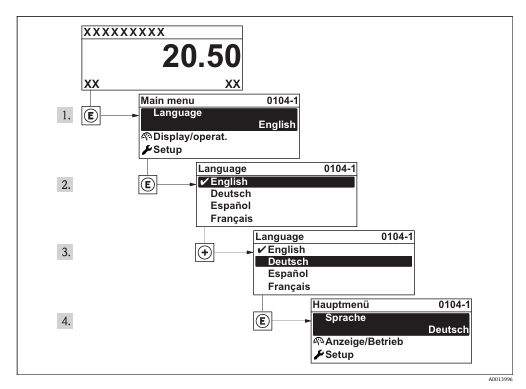

4.1 Settings Operating Language: Factory Settings: English or local language ordered

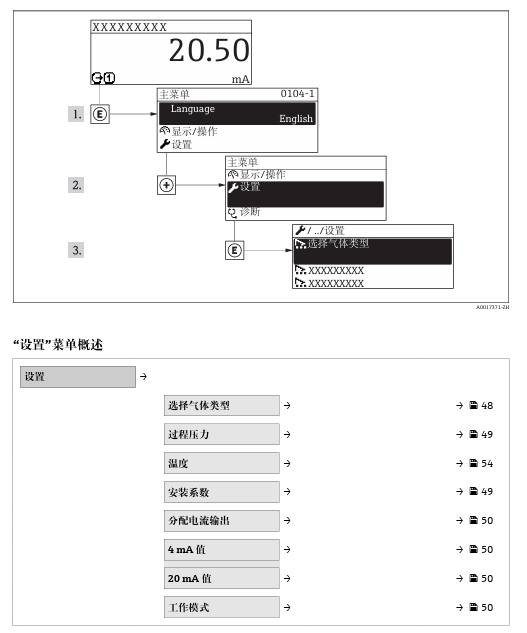

4.2 setting measuring equipment:setup menu and its setup wizard.

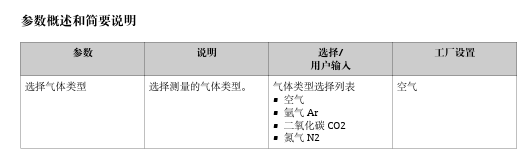

4.3 Select Gas Type

menu path Settings menu & rarr; Select gas type

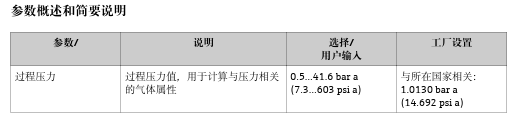

4.4 Set Process Pressure

Settings menu & rarr; Process Pressure

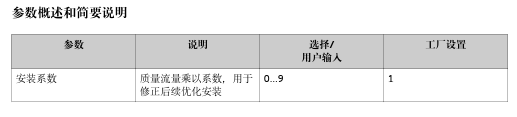

4.5 to determine the installation factor

menu path Settings menu & rarr; Install Factor

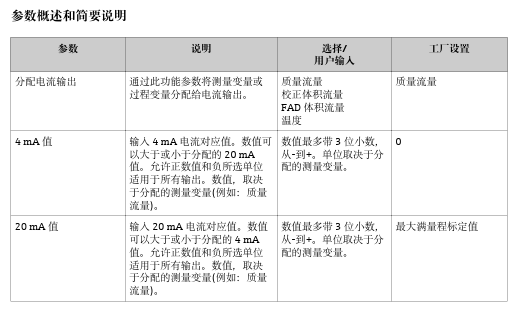

4.6 Set Current Output

menu path "Settings" menu & rarr; Assign current output "Settings" menu & rarr;4 mA value "Settings" menu & rarr;20 mA value

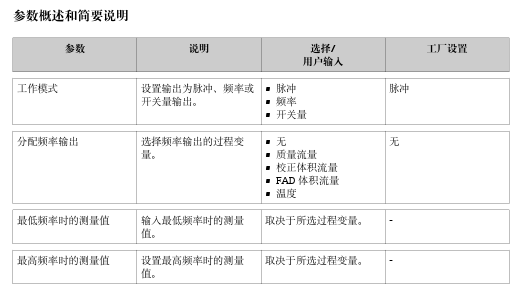

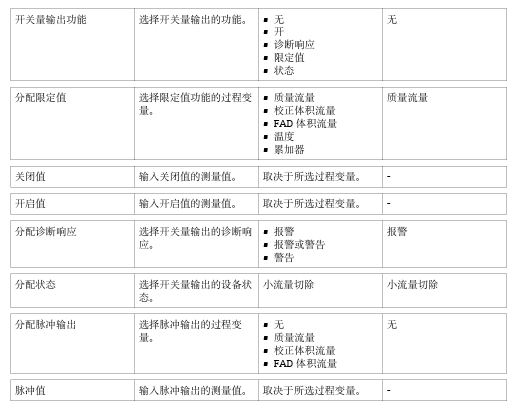

4.7 setting pulse/frequency/switch output

menu path • Settings menu & rarr; Operating mode • Settings menu & rarr; Assign frequency output • Settings menu & rarr; Switching output function • Settings menu & rarr; Assign pulse output.
