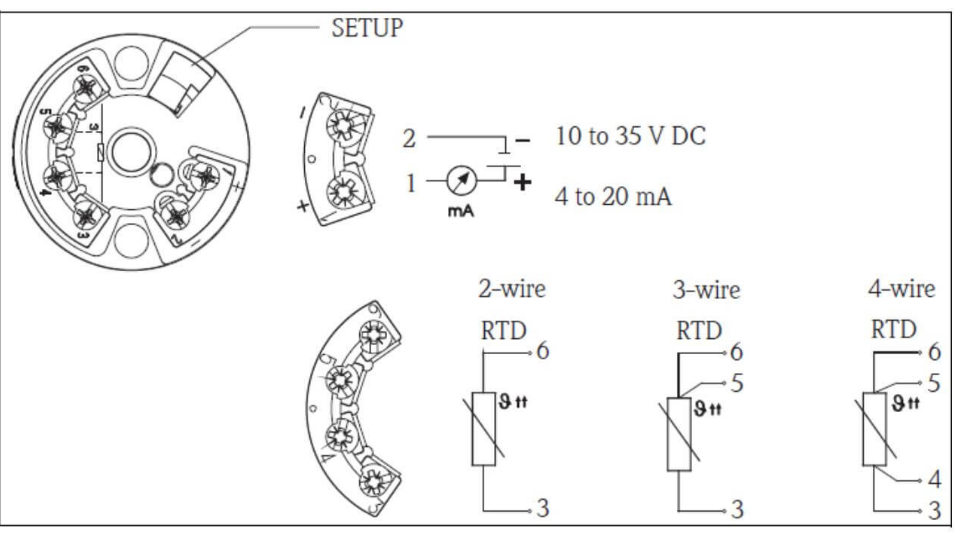

Wiring of TMT180
power supply is two-wire 10-35 VDC 1,2-
TMT180 can only be connected to the thermal resistance, can not be connected to the thermocouple two-wire thermal resistance: to 3 and 6 terminals.
Two-wire thermal resistance: one end is connected to 3, and the other end is connected to 5 and 6.
Four-wire thermal resistance: two wires at one end are connected to 3 and 4, and two wires at the other end are connected to 5 and 6.
