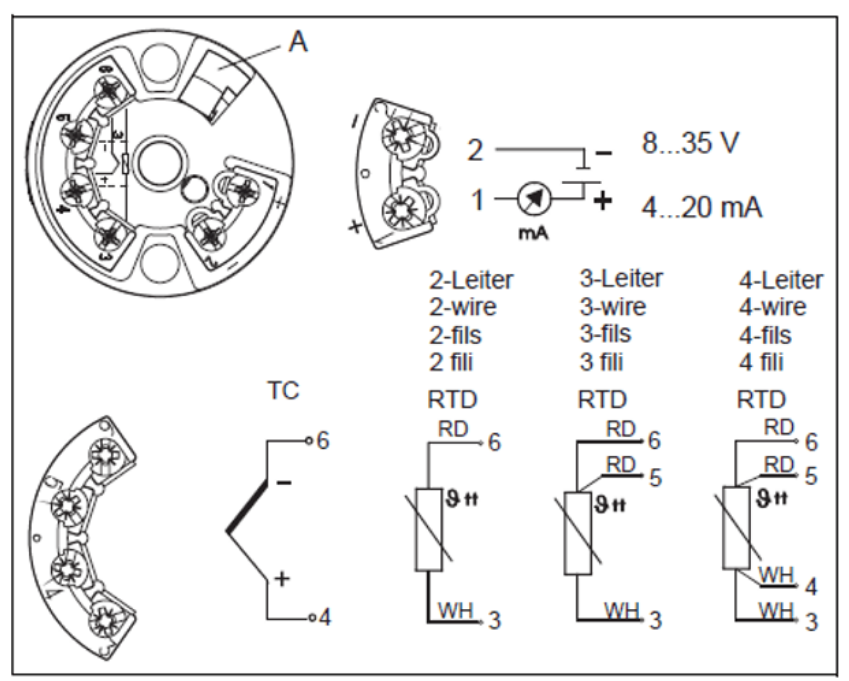

Wiring of temperature transmitter TMT80
power supply is two-wire 8-35V DC 1,2-
The TMT80 can be connected to a thermocouple or a thermal resistor. Thermocouple: 4,6-
Two-wire thermal resistance: 3 and 6 terminals.
Three-wire thermal resistance: one end is connected to 3, and the other end is connected to 5 and 6.
Four-wire thermal resistance: two wires at one end are connected to 3 and 4, and two wires at the other end are connected to 5 and 6.
